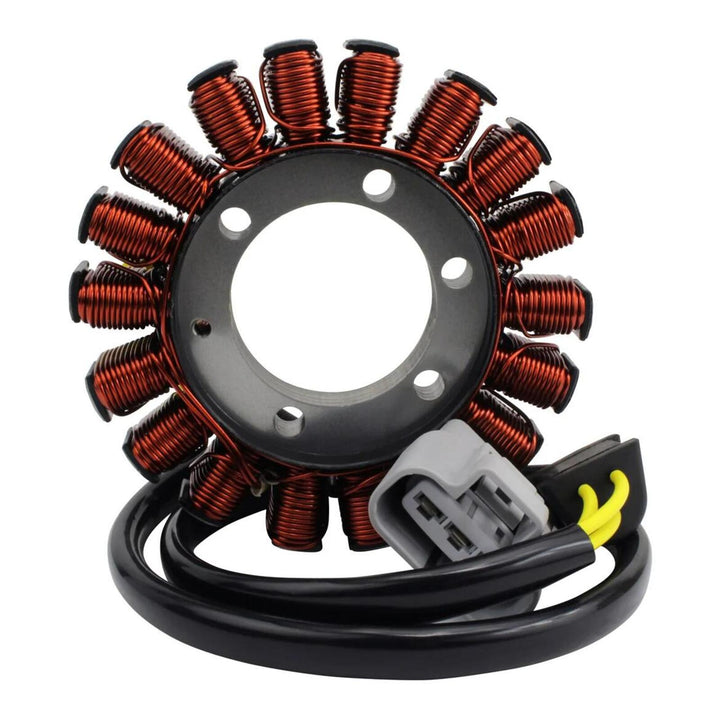

Name: Improved Stator KTM Adventure/R & Super Duke Model
Brand: RMSTATOR
SKU: RMS010109002
Price: 432.99 NZD
Availability: InStock

Improved Stator KTM Adventure/R & Super Duke Model

$432.99

Shipping calculated at checkout.

Quantity

Low stock - 2 items left
Inventory on the way

Most products are not stocked instore. Please contact us to confirm instore availability.

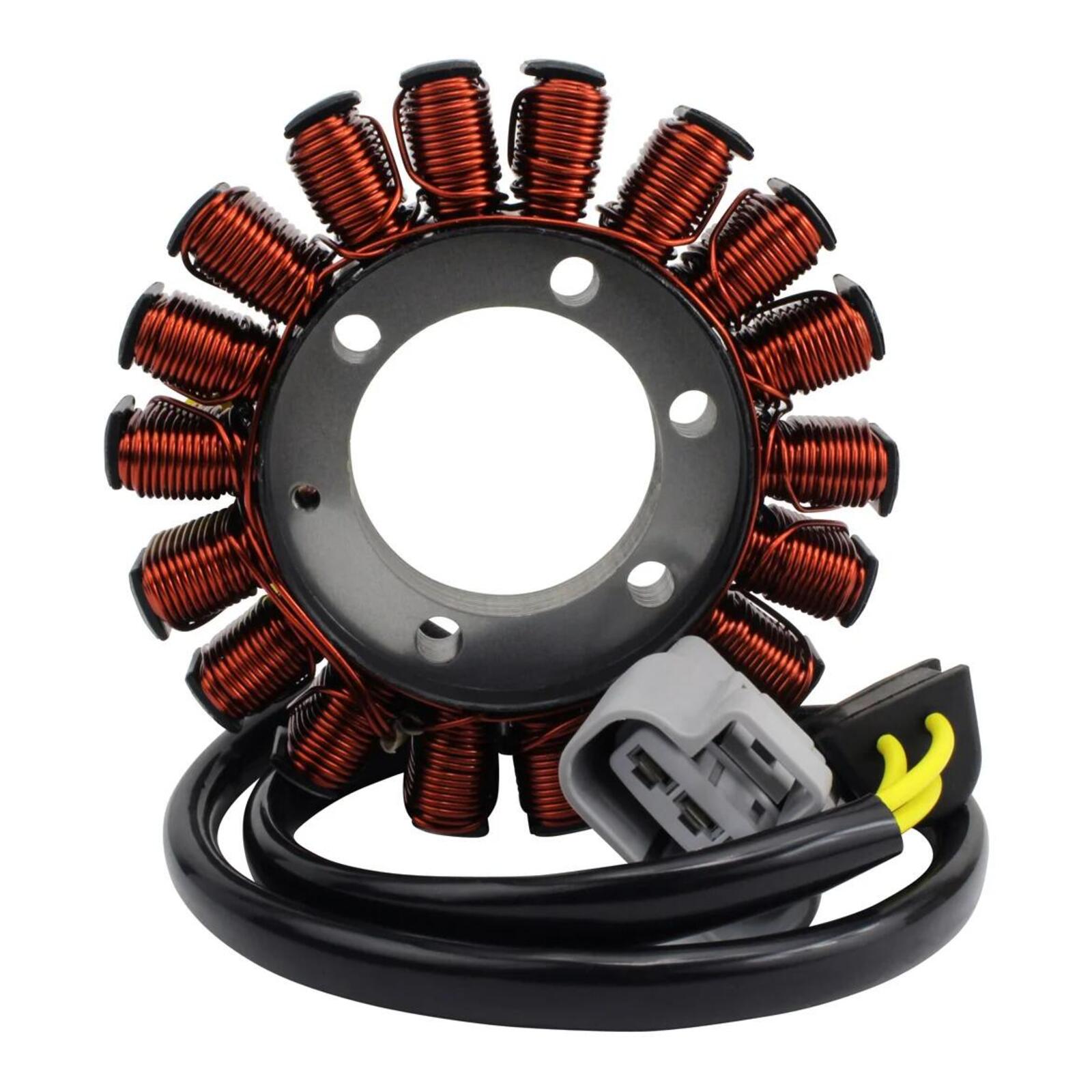

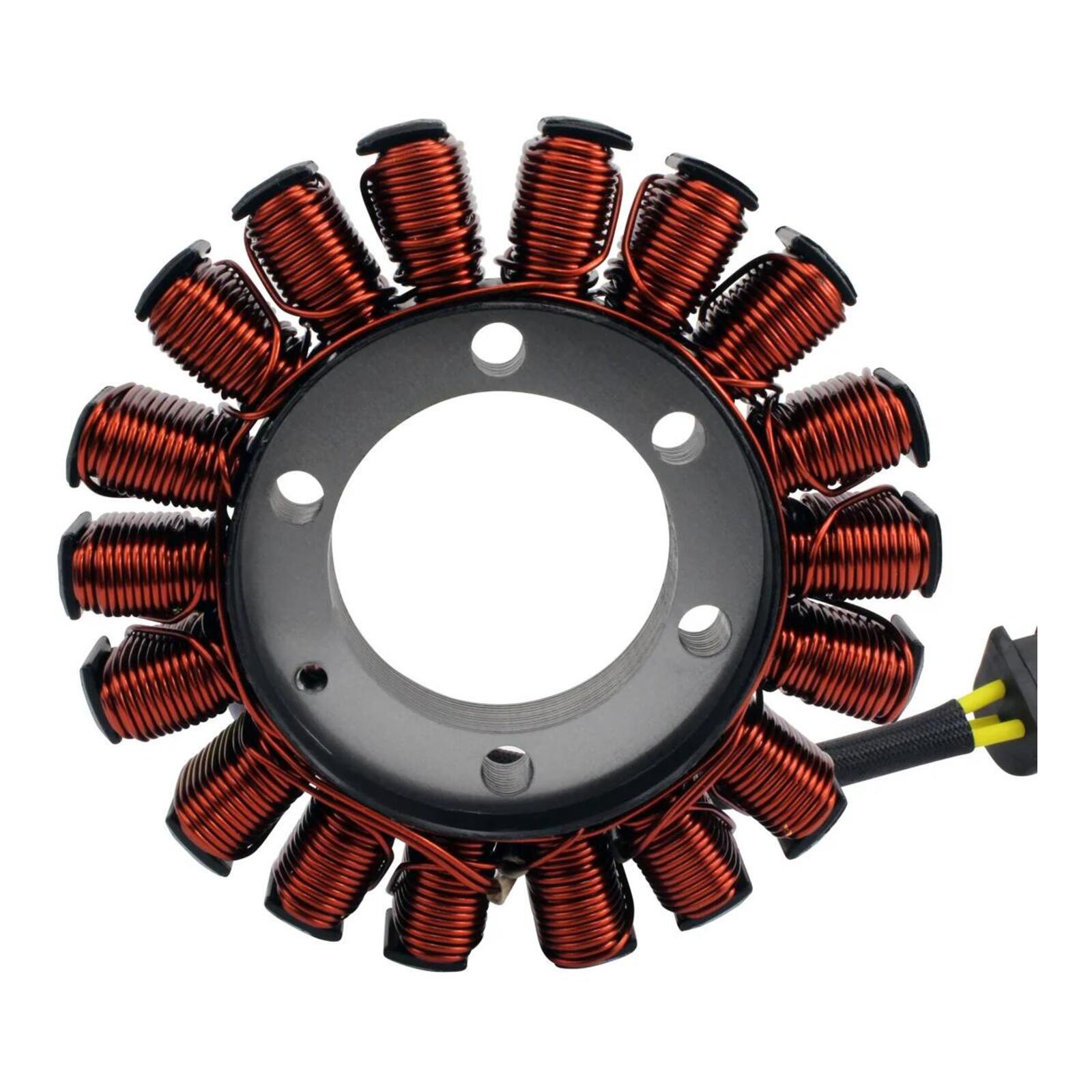

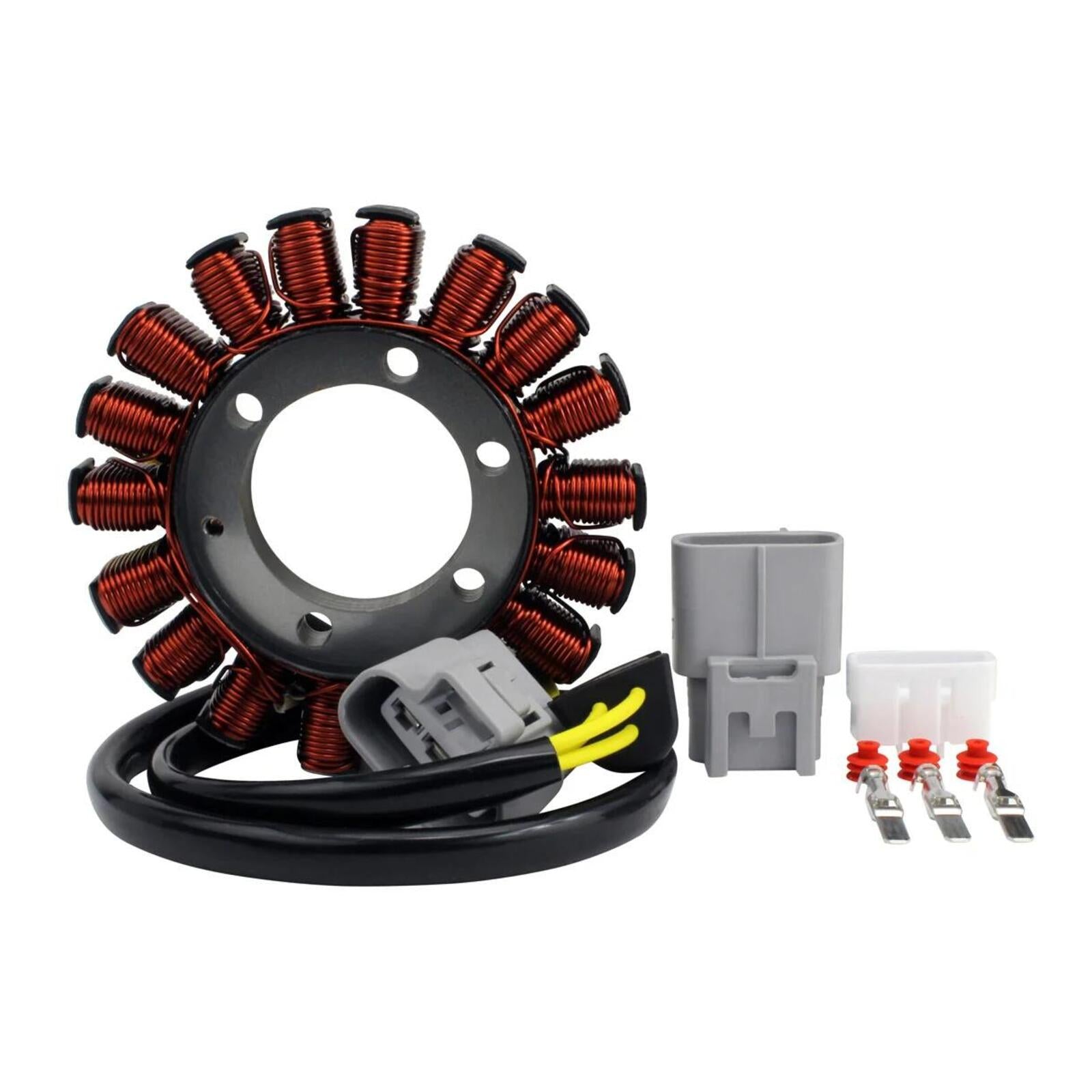

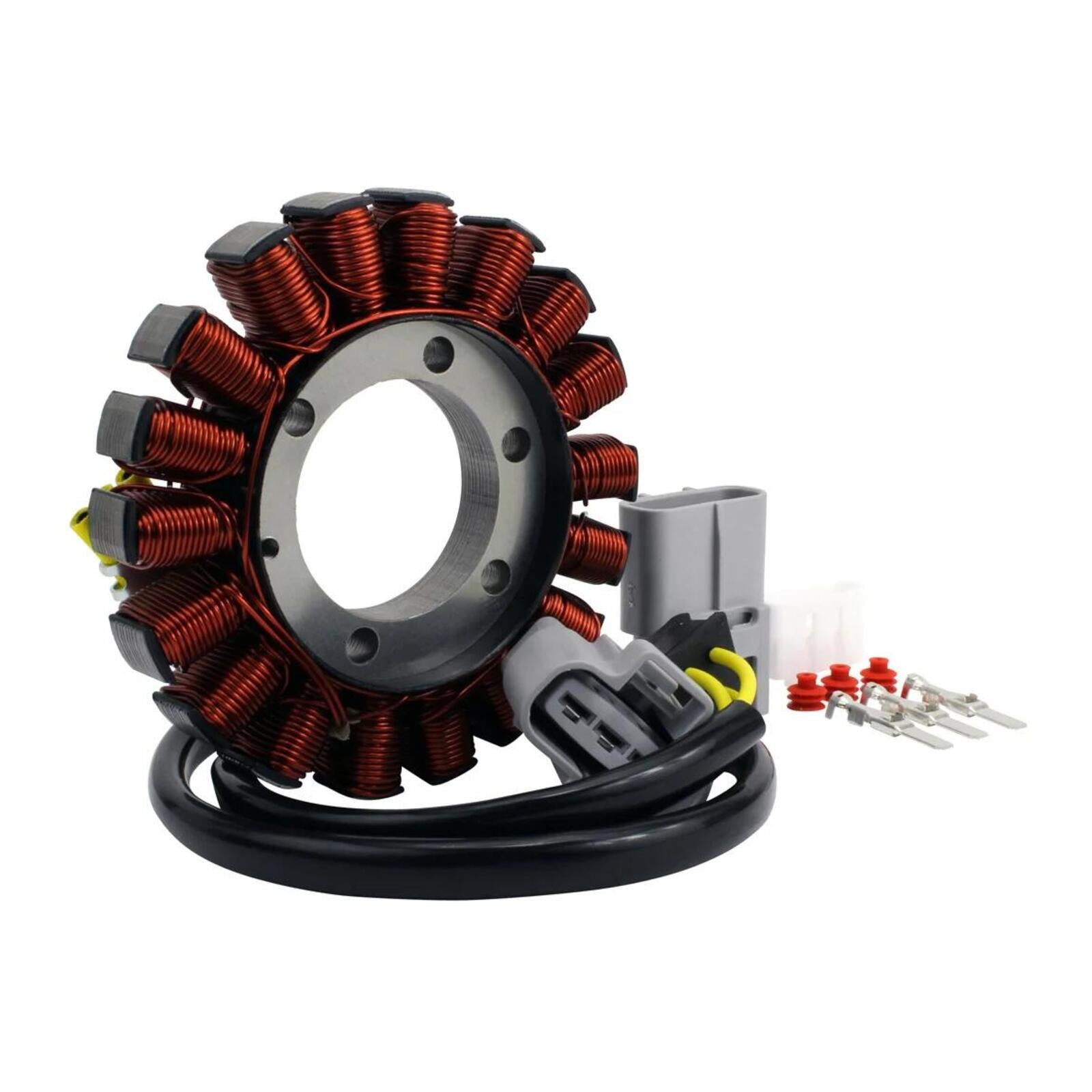

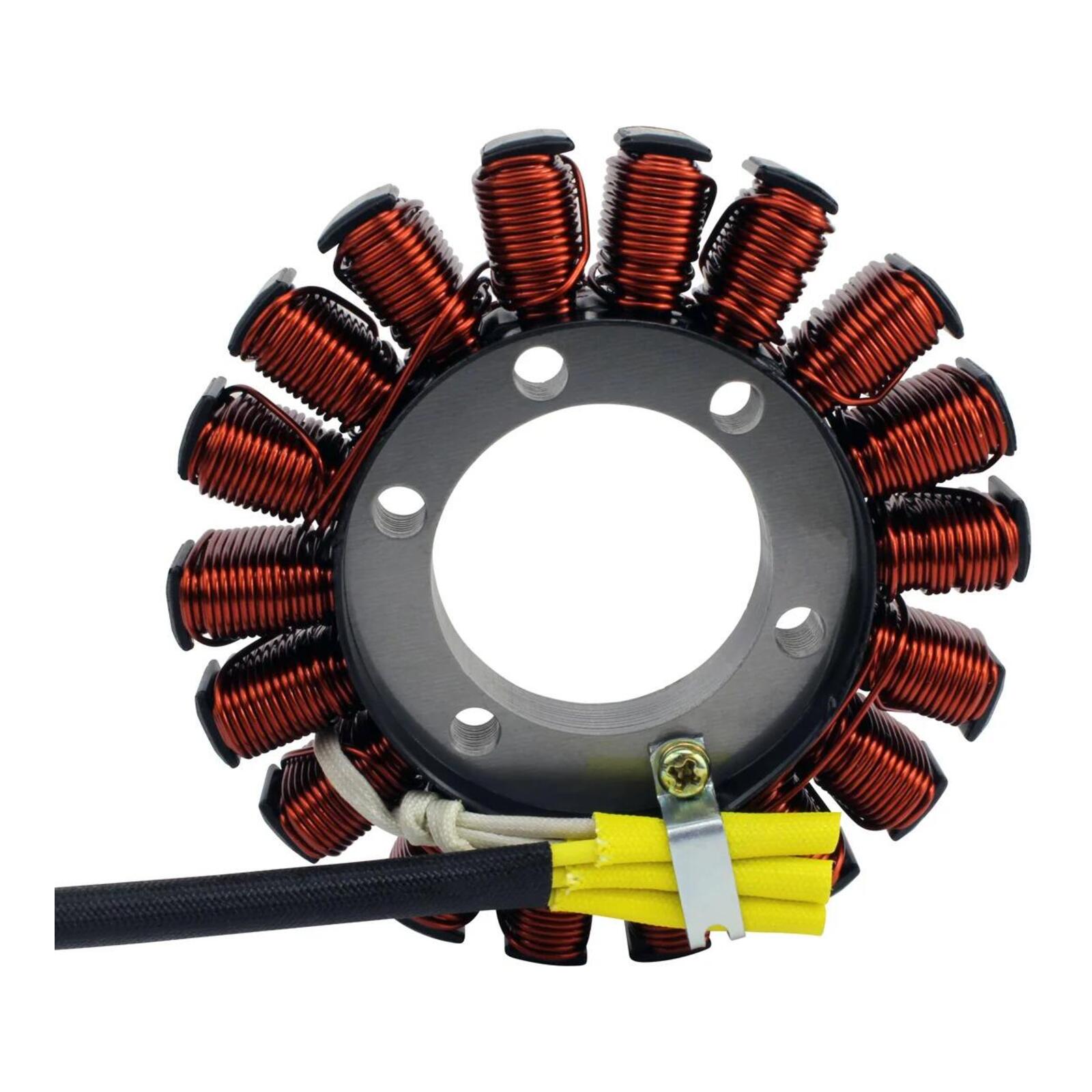

Brand-new aftermarket improved stator.

Features:

Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.

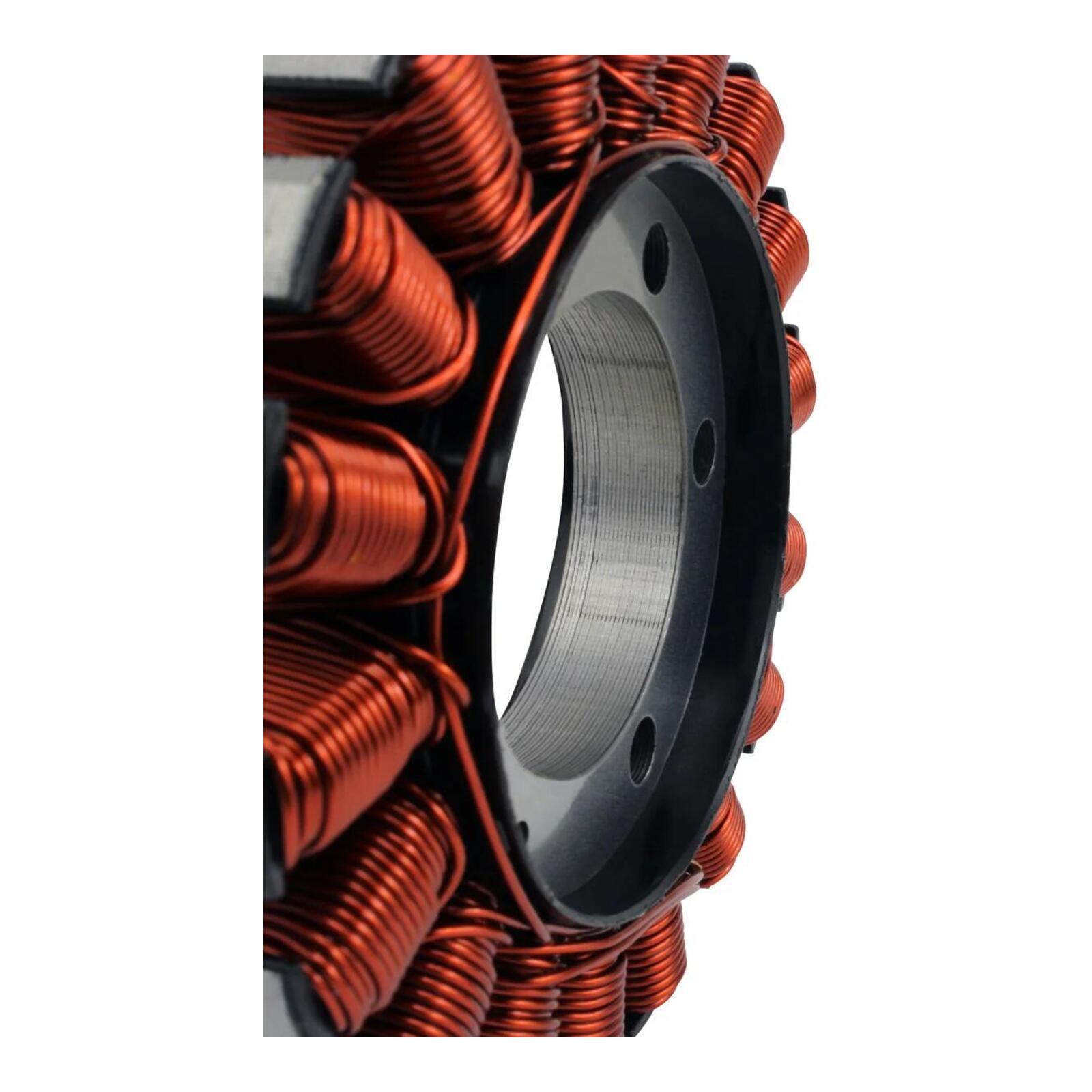

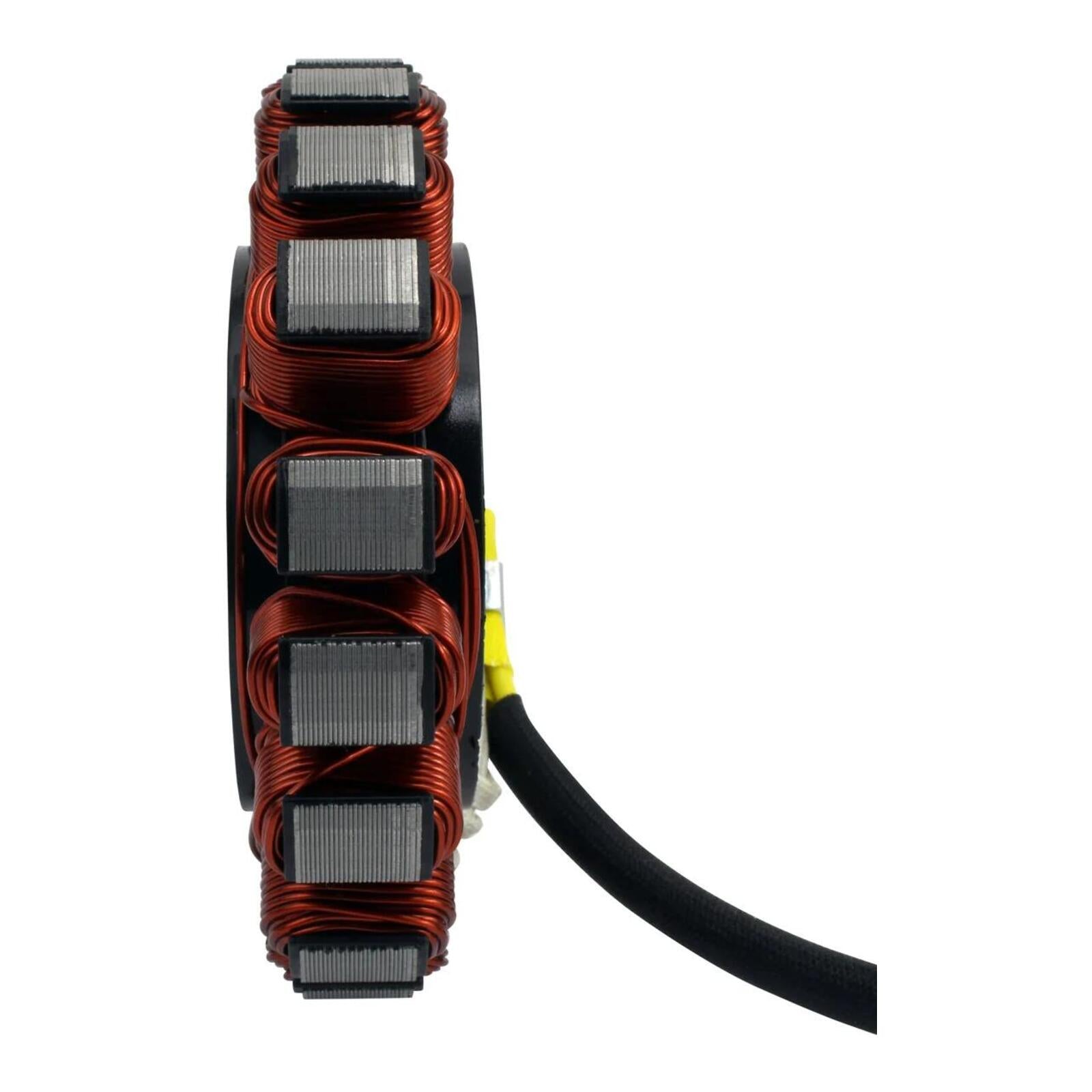

Highest grade of thin silicone steel laminations.

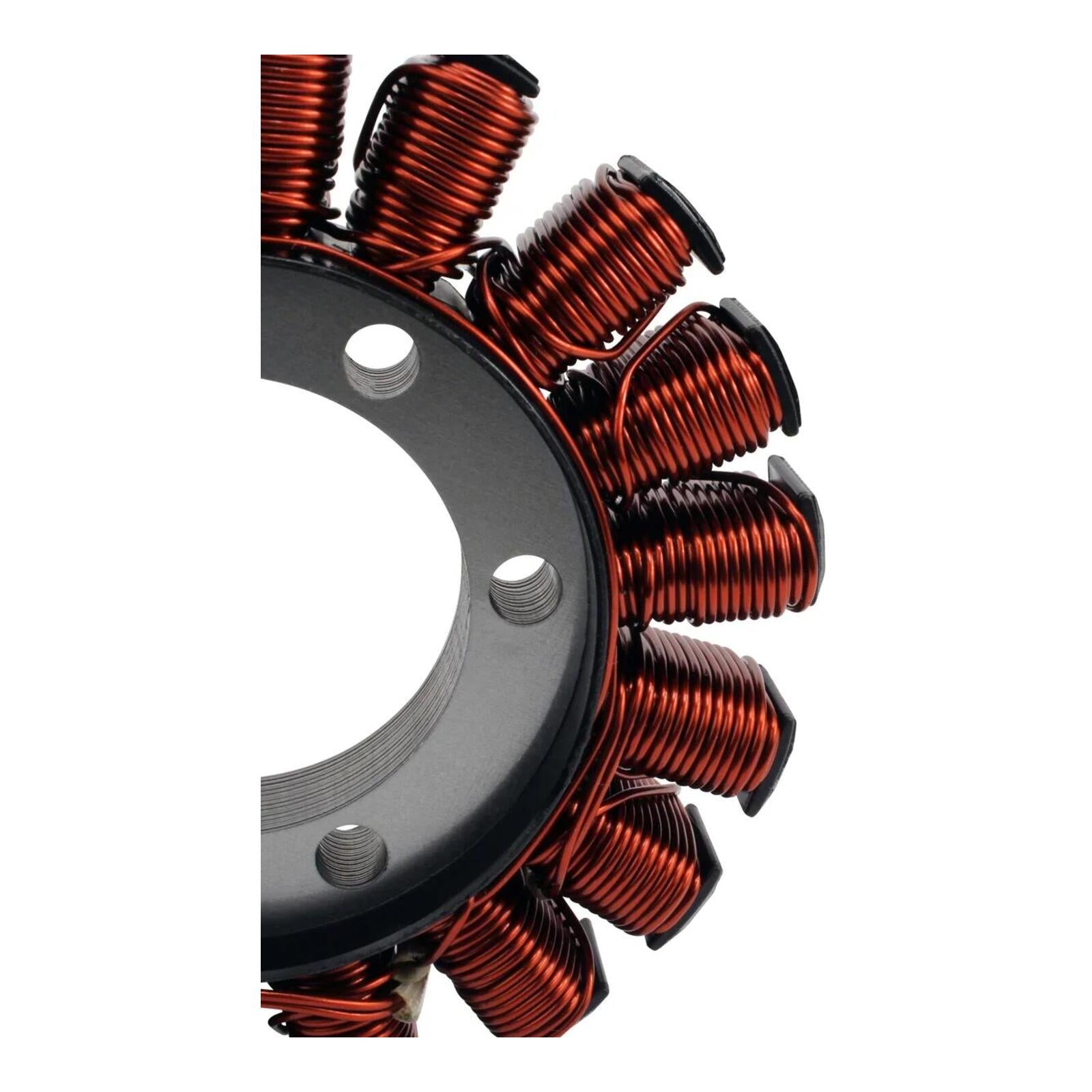

Highest grade of copper winding, resistant to 200 degrees Celsius.
High temperature wires.

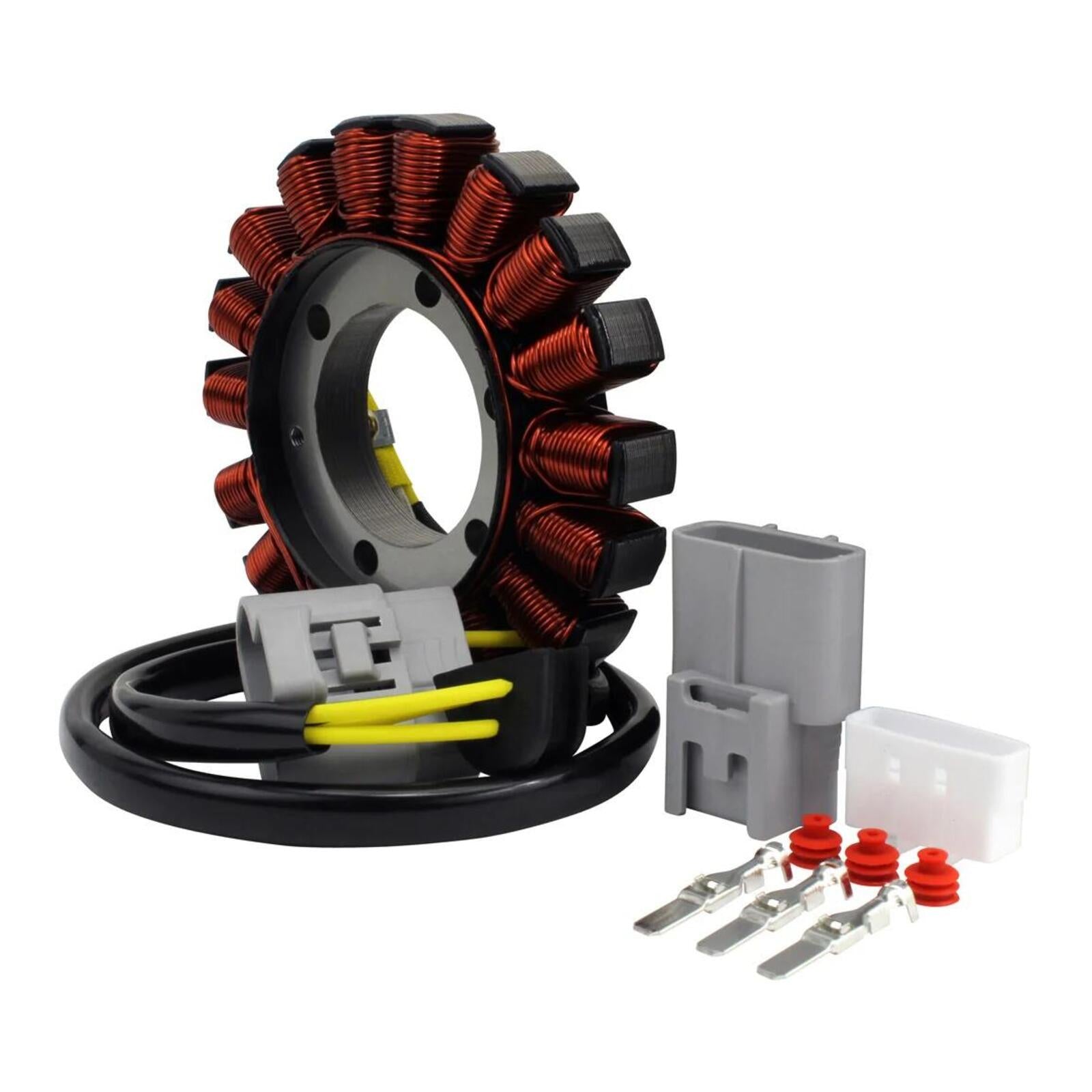

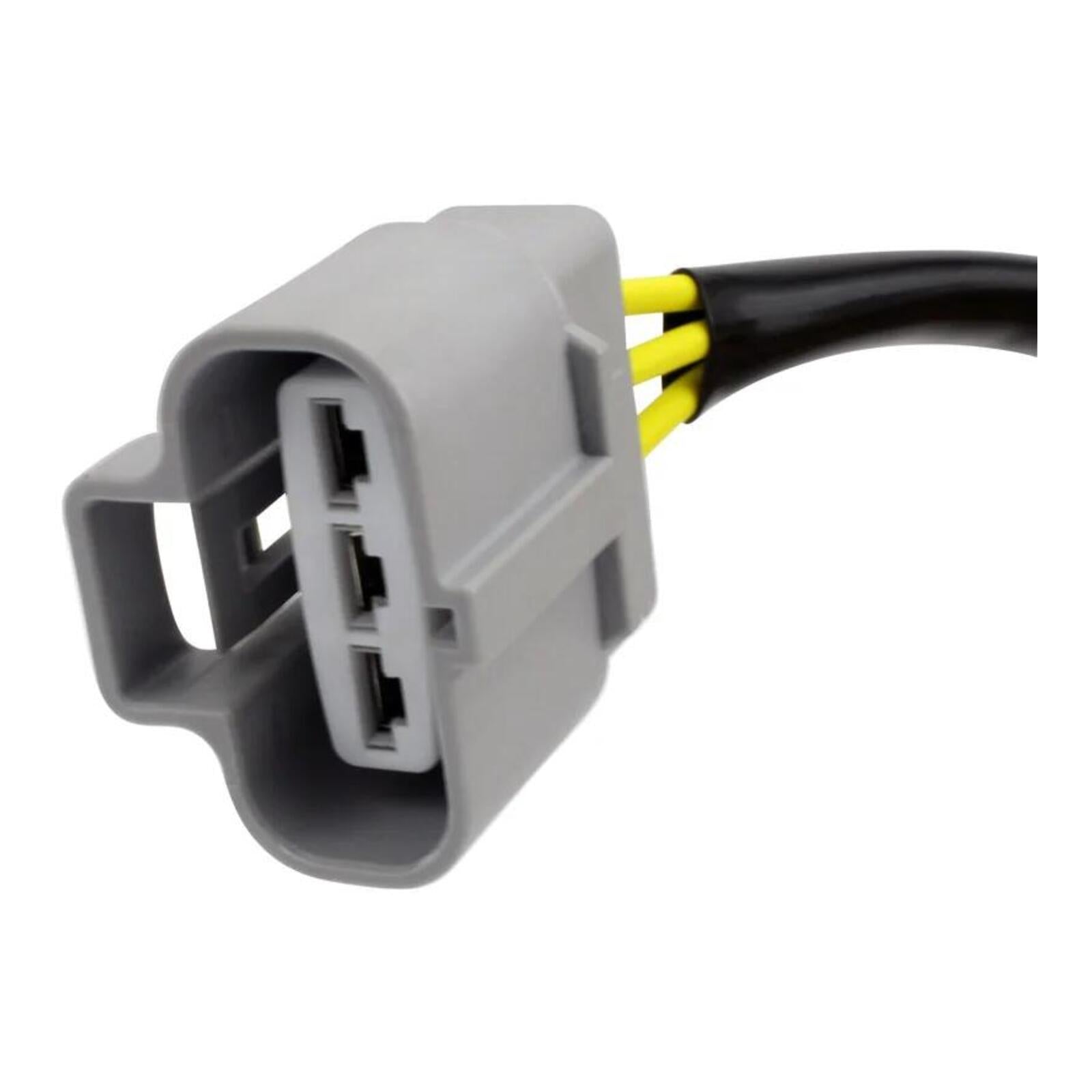

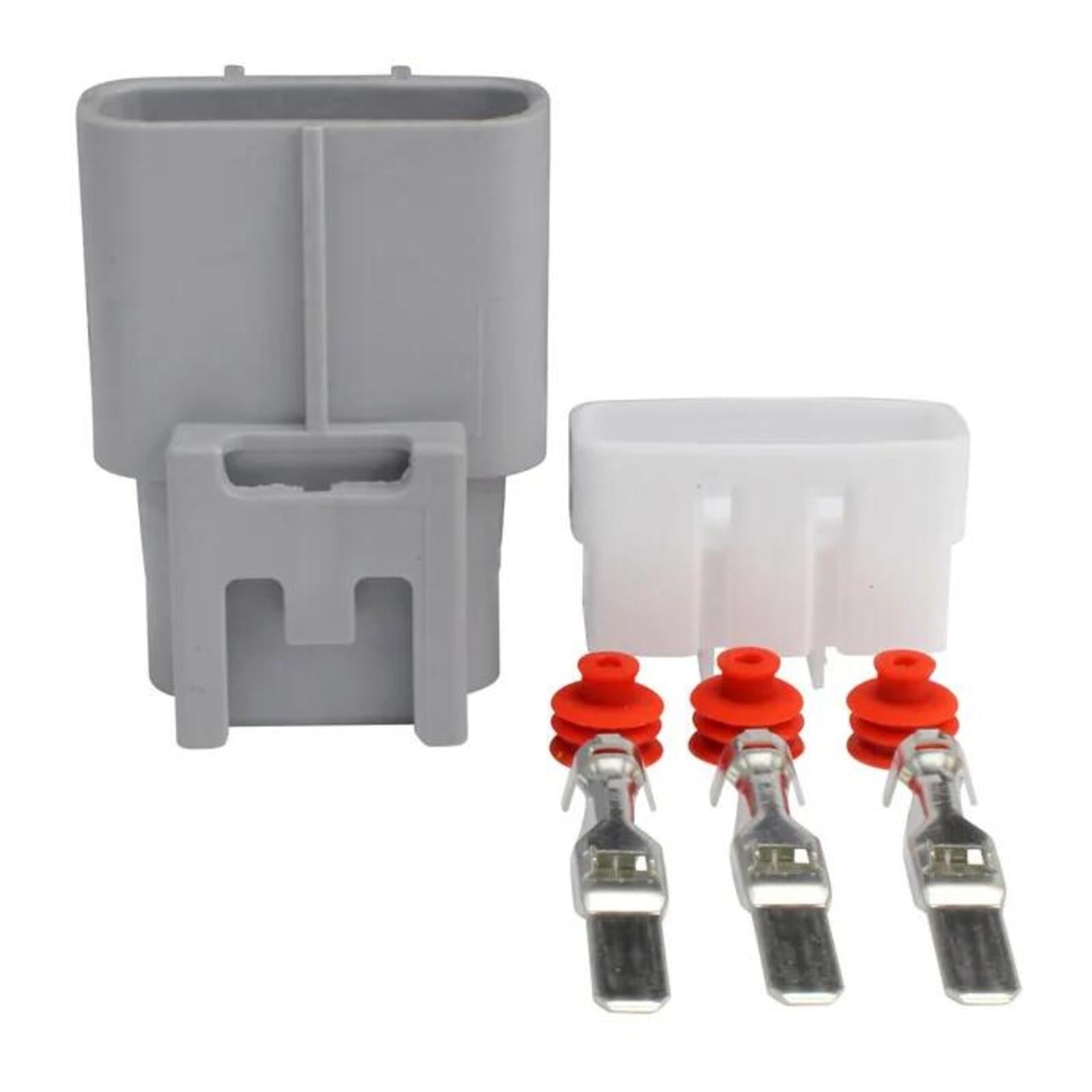

Connectors included.

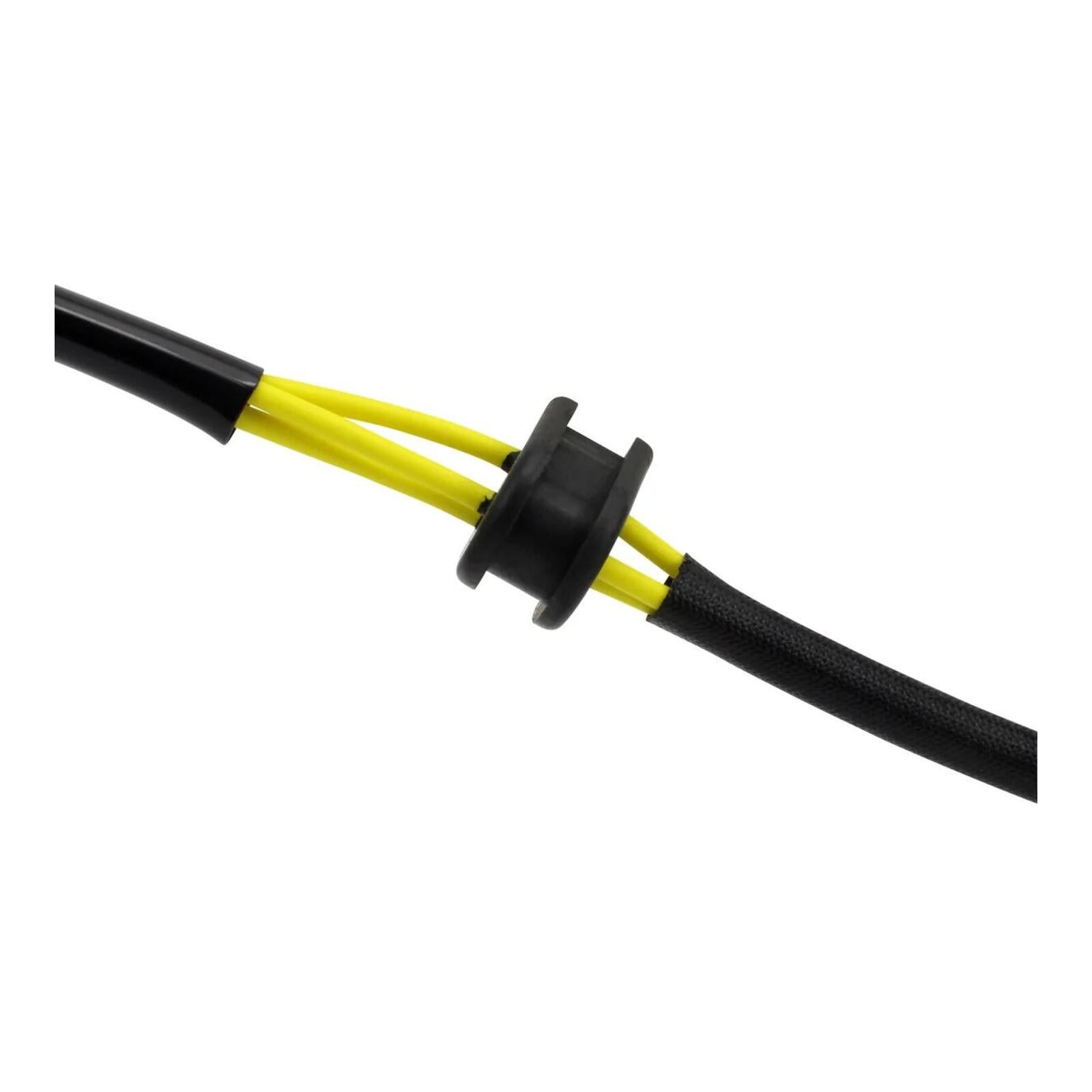

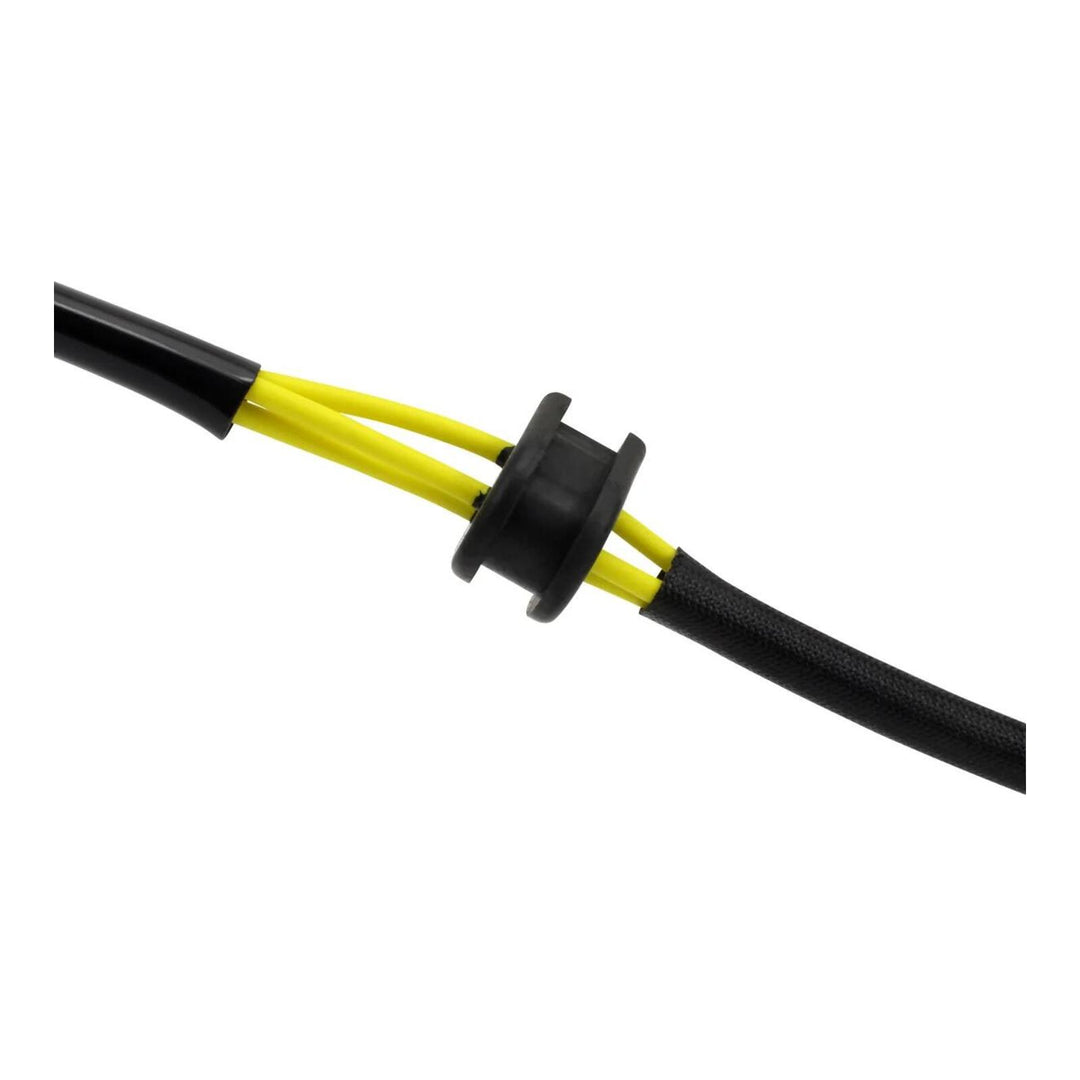

Rubber grommet included.
All products shipped are tested.

Specifications:

Di mensions

Interior diameter: 42 mm
Exterior diameter: 107 mm
Thickness: 12 mm
Length of wires stator to grommet: 110 mm
Length of wires grommet to plug: 600 mm

Other specifications

Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18

Wire-to-wire resistance

Alternator: Yellow to Yellow = 0.6 ohms +/-20%
Alternator: Yellow to ground = O.L
