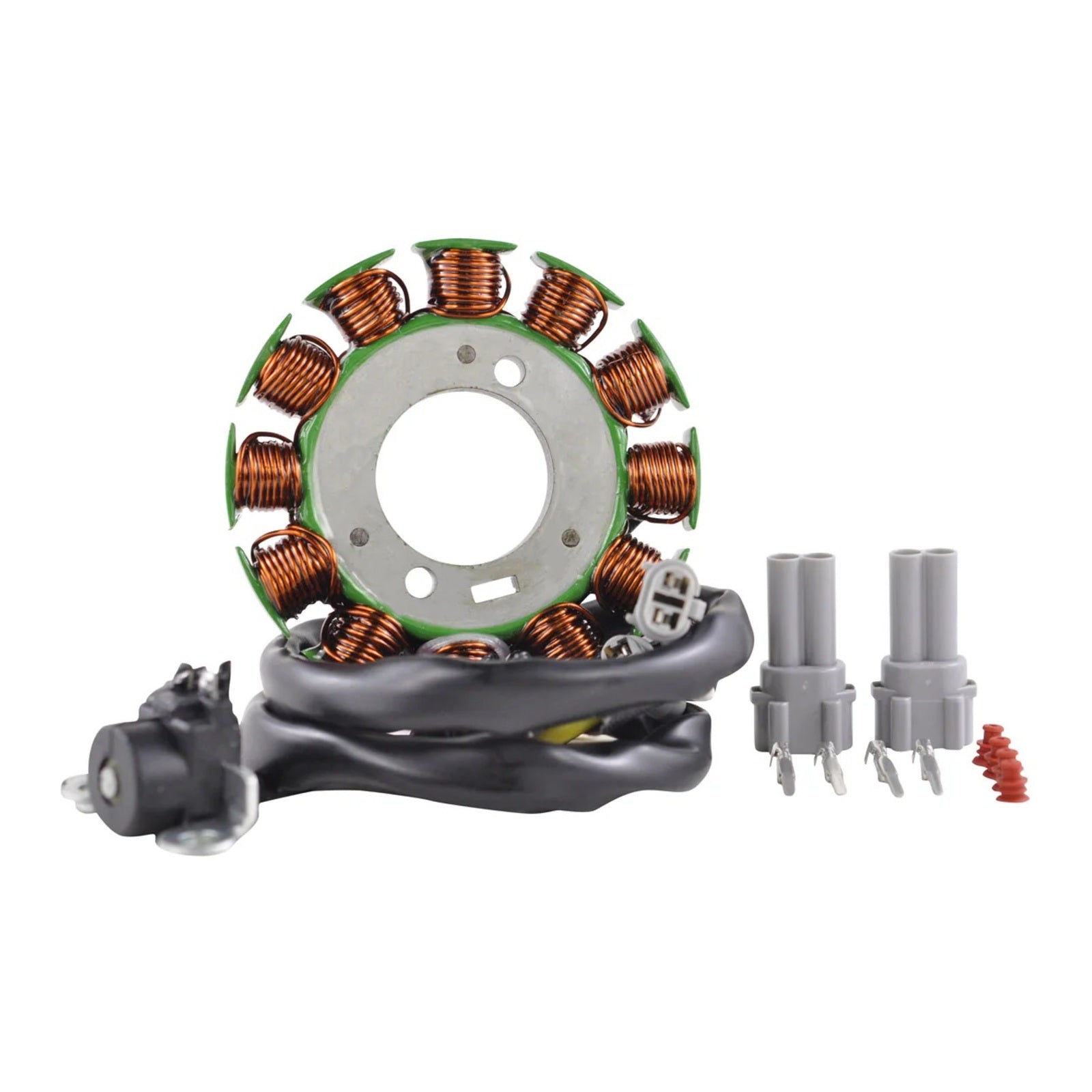

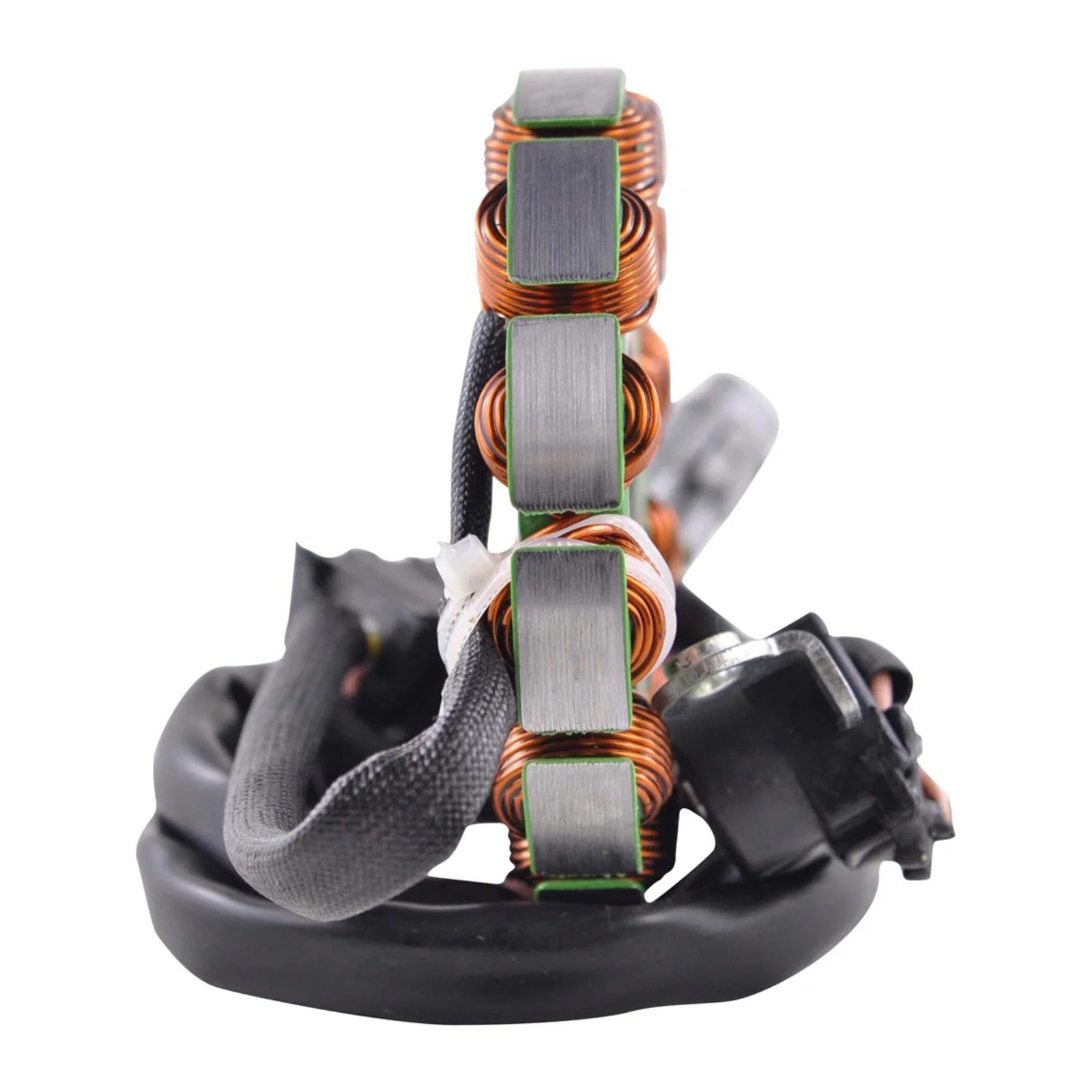

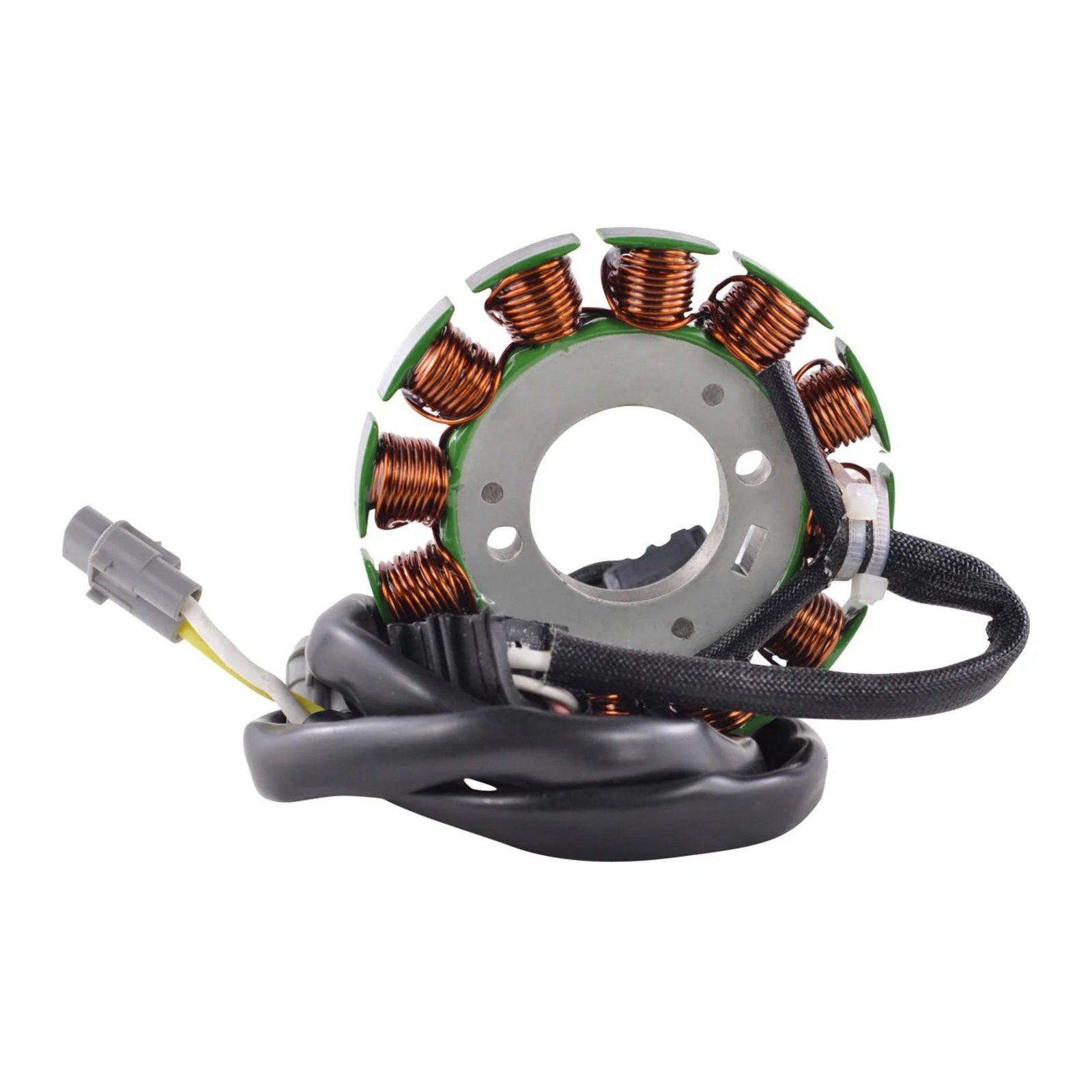

Generator Stator – Yamaha WR250F '05–'13

Brand new aftermarket stator. Direct replacement to your original unit.

Features:

• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.

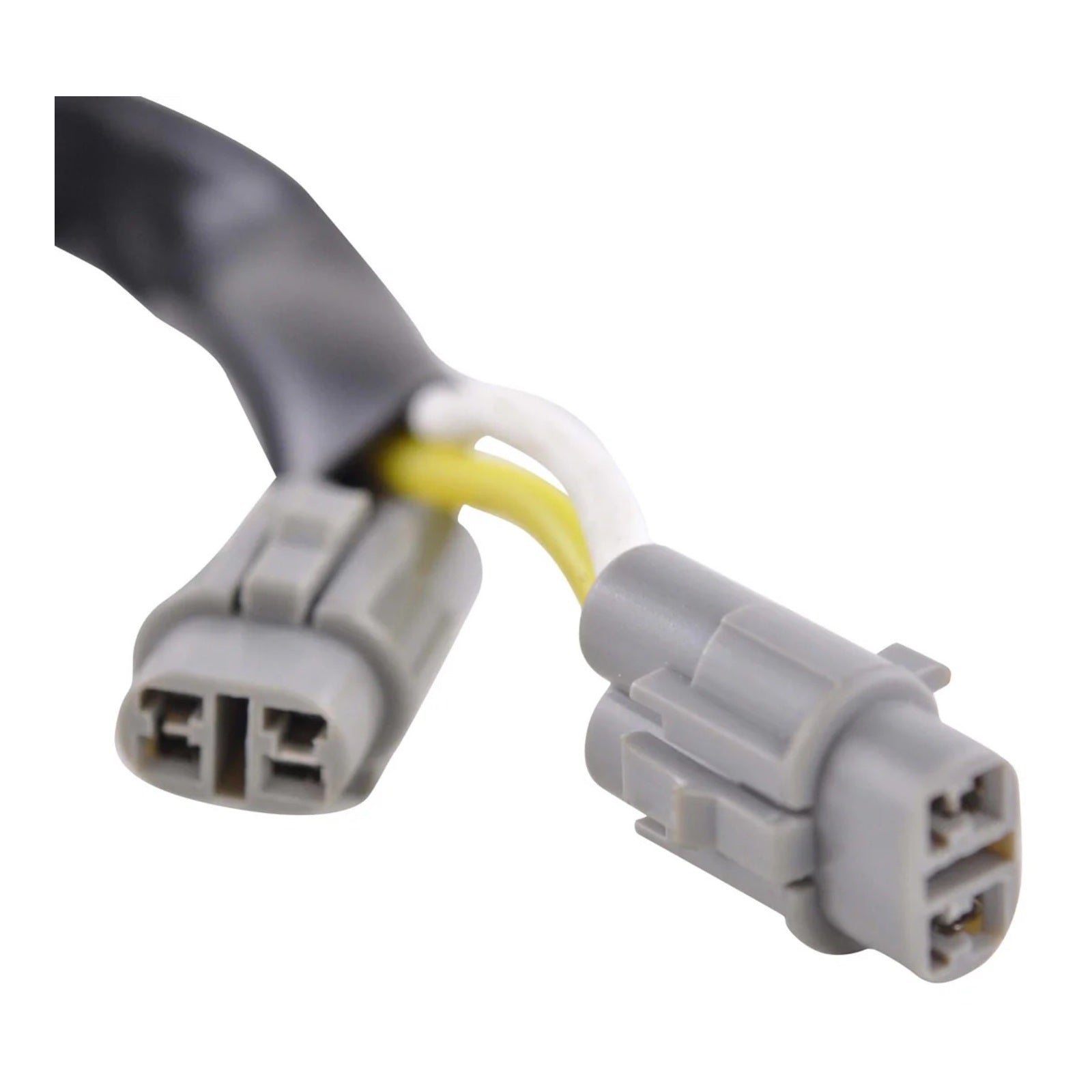

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

Specifications:

Di mensions

• Interior Diameter: 30mm
• Exterior Diameter: 84mm
• Thickness: 9mm
• Stator to Grommet: 110mm
• Grommet to Plug: 545mm
• Pickup Coil to Grommet: 90mm

Other Specifications

• Number of Wires: 4
• Number of Plugs: 2

Resistance Values

• Alternator (Yellow to White): 0.4 Ω ±20%
• Pickup (Pink to White): 280 Ω ±20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
