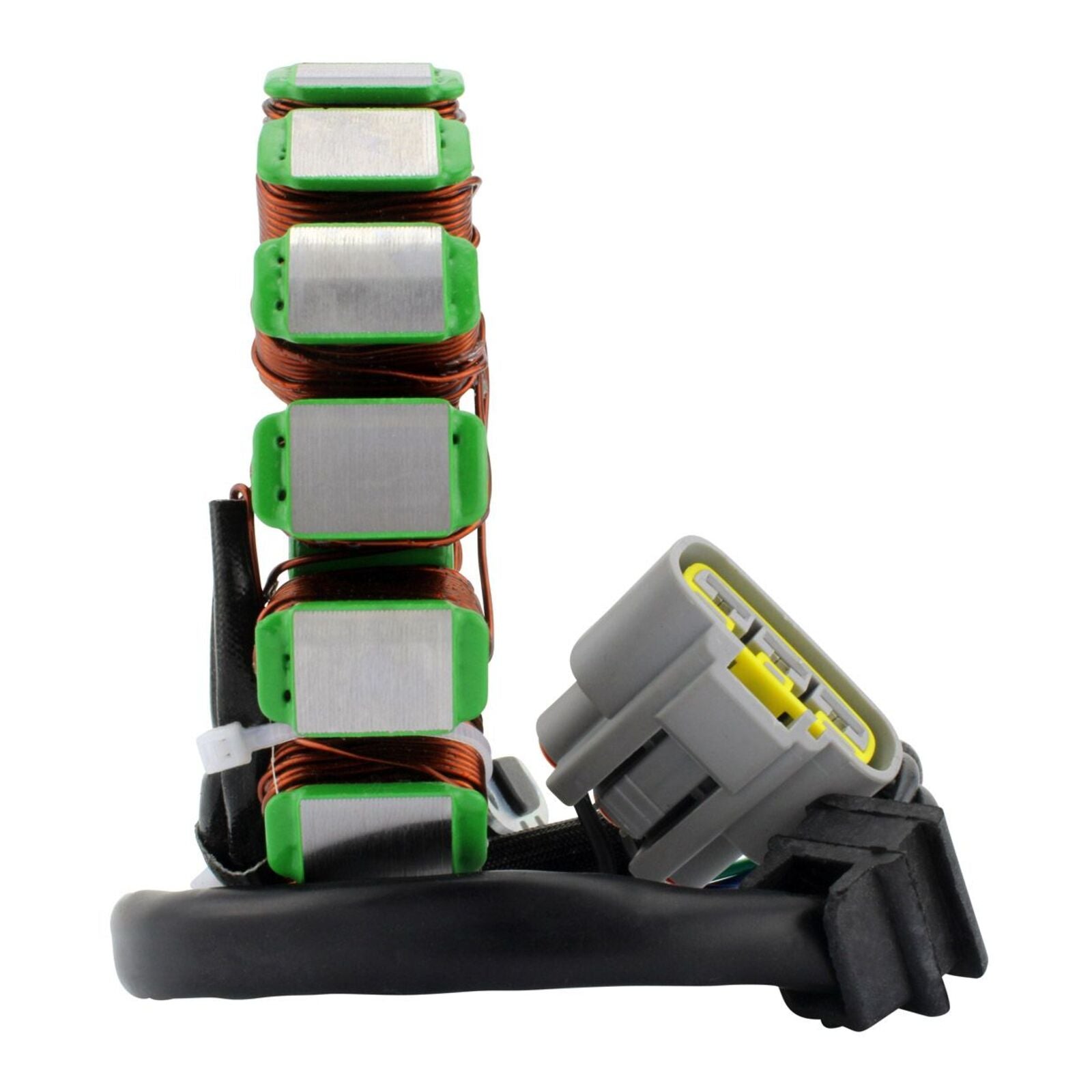

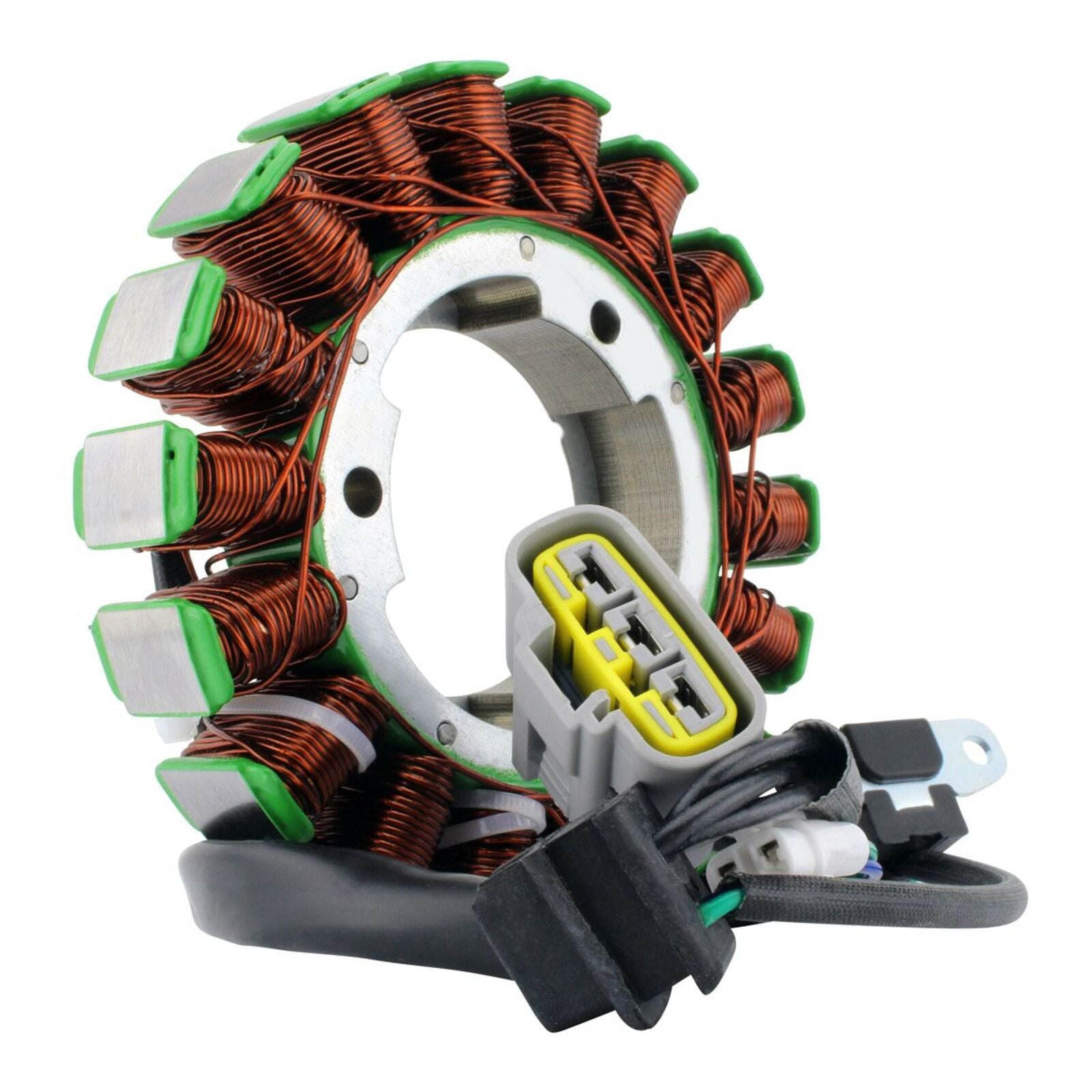

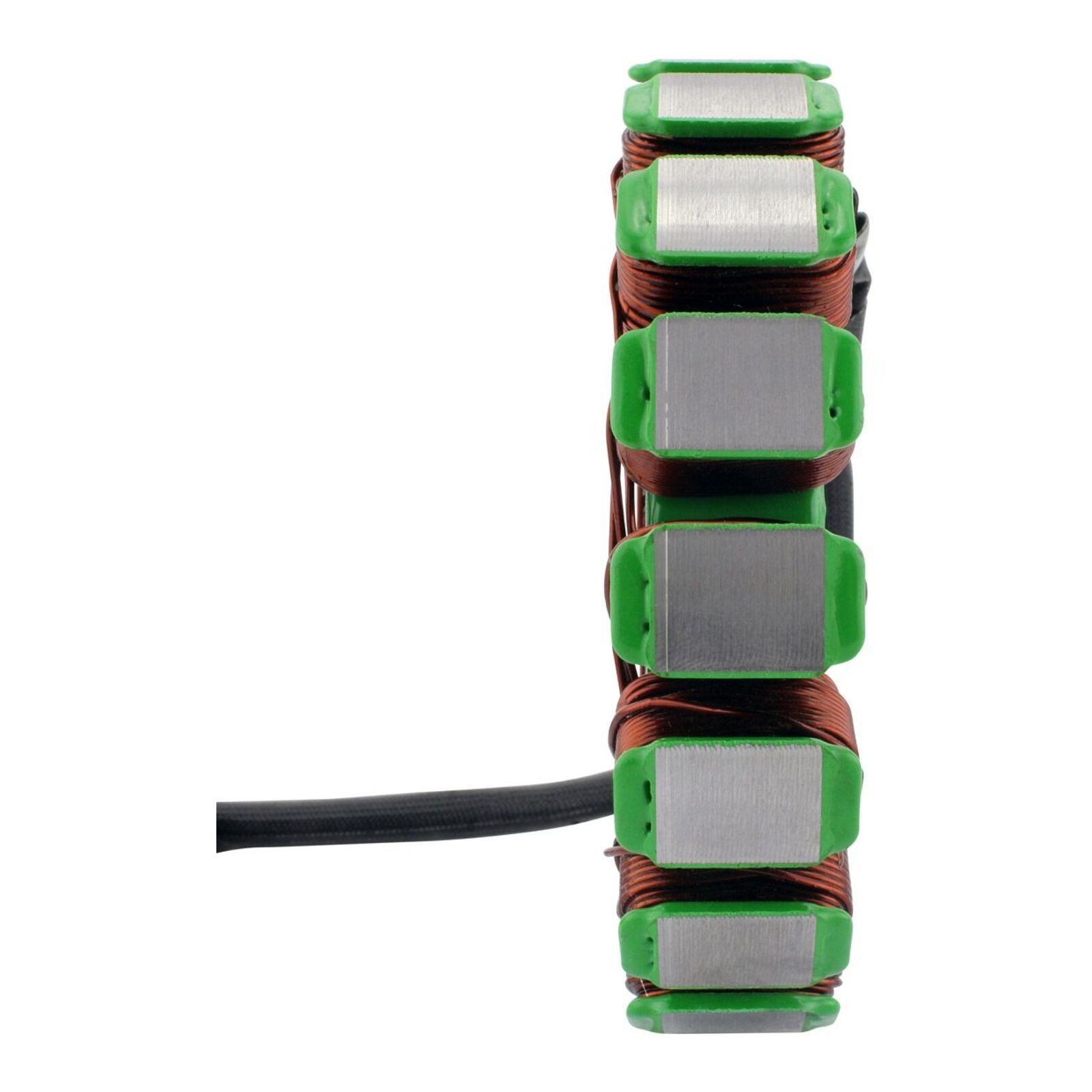

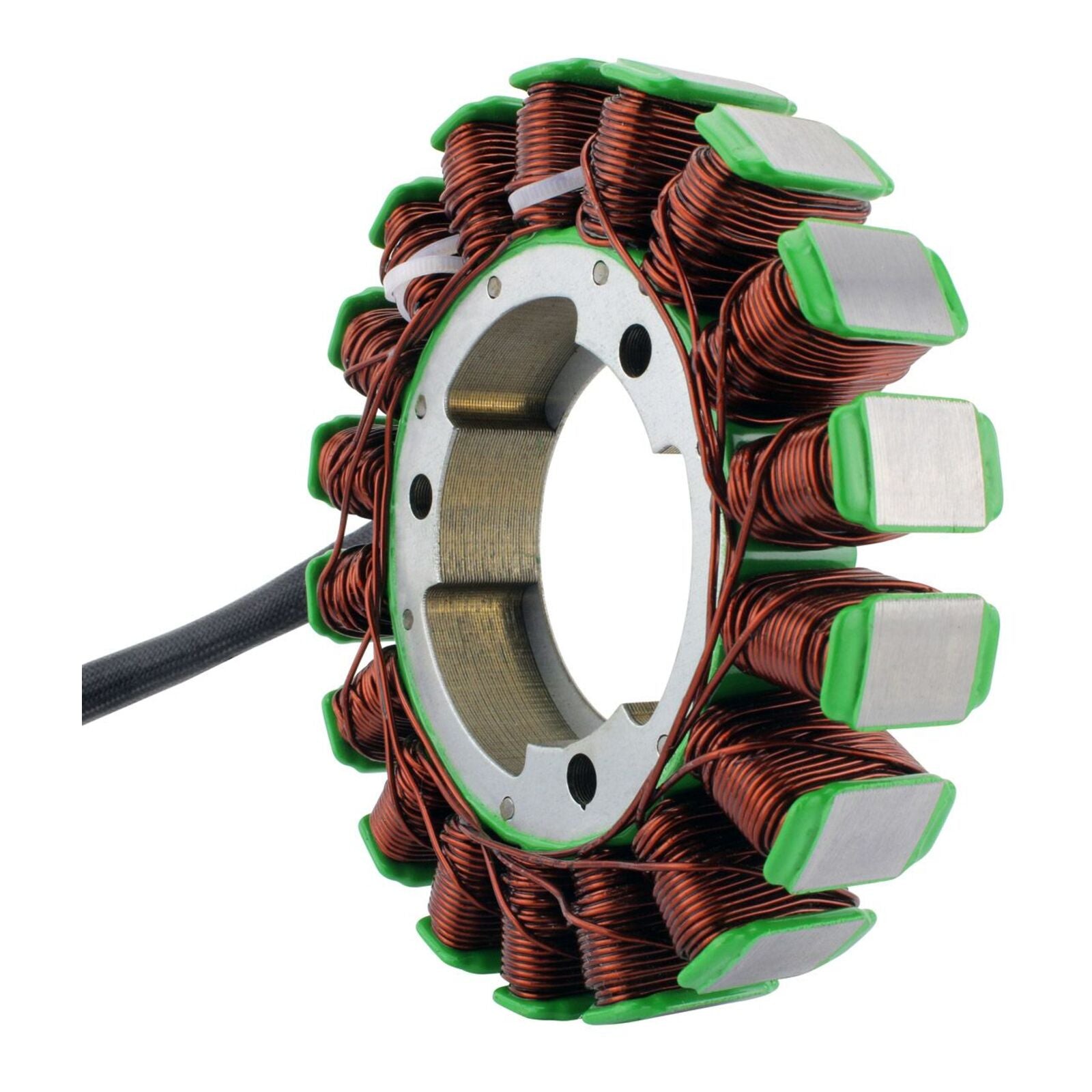

Name: GENERATOR STATOR SUZU LTA 750 KINGQUAD
Brand: RMSTATOR
SKU: RMS010107459
Price: 429.9 NZD
Availability: OutOfStock

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459_1.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459_2.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459_3.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459_4.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459_5.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459_6.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459_7.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459_8.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459_9.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459_10.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107459_11.JPG

$429.90

Shipping calculated at checkout.

Quantity

Most products are not stocked instore. Please contact us to confirm instore availability.

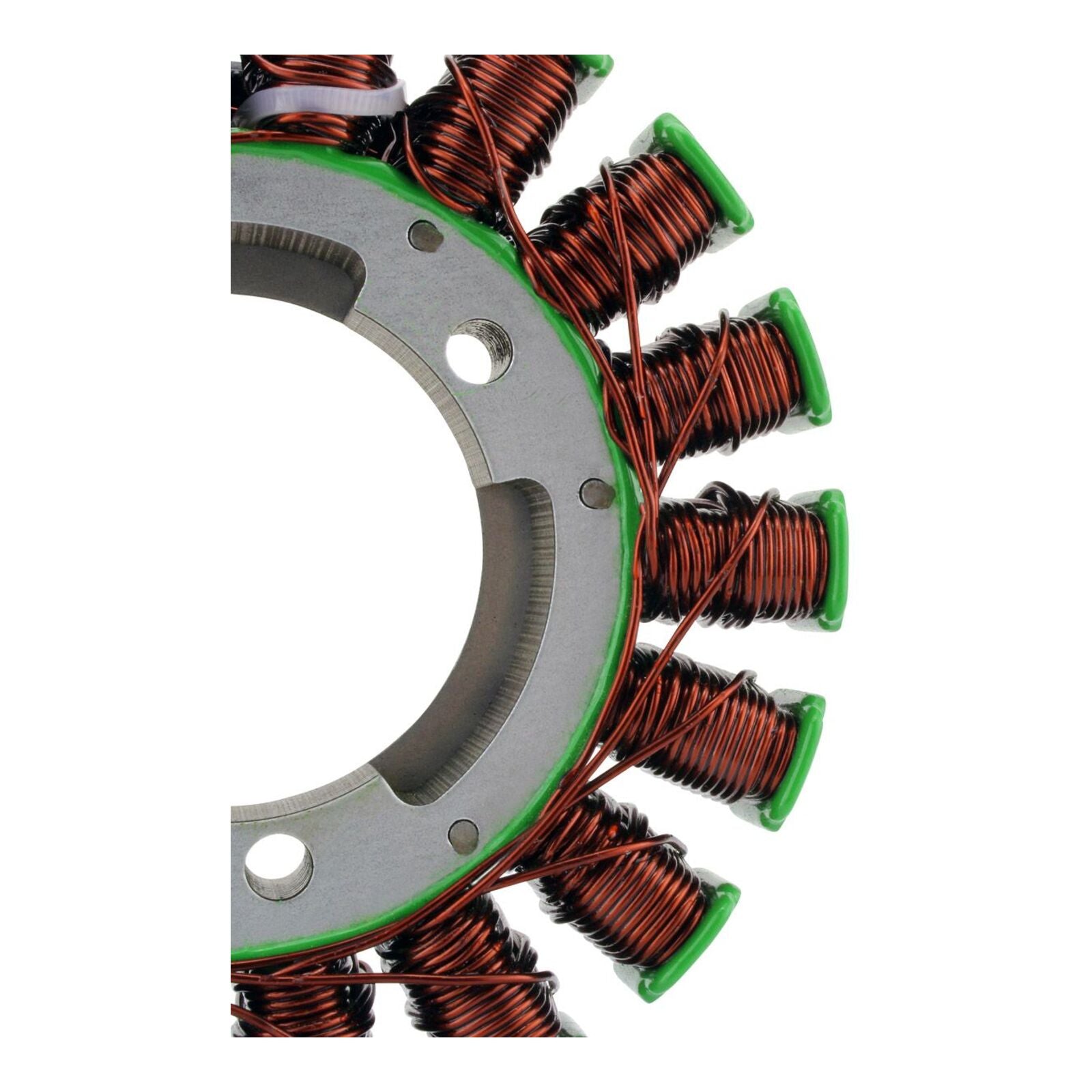

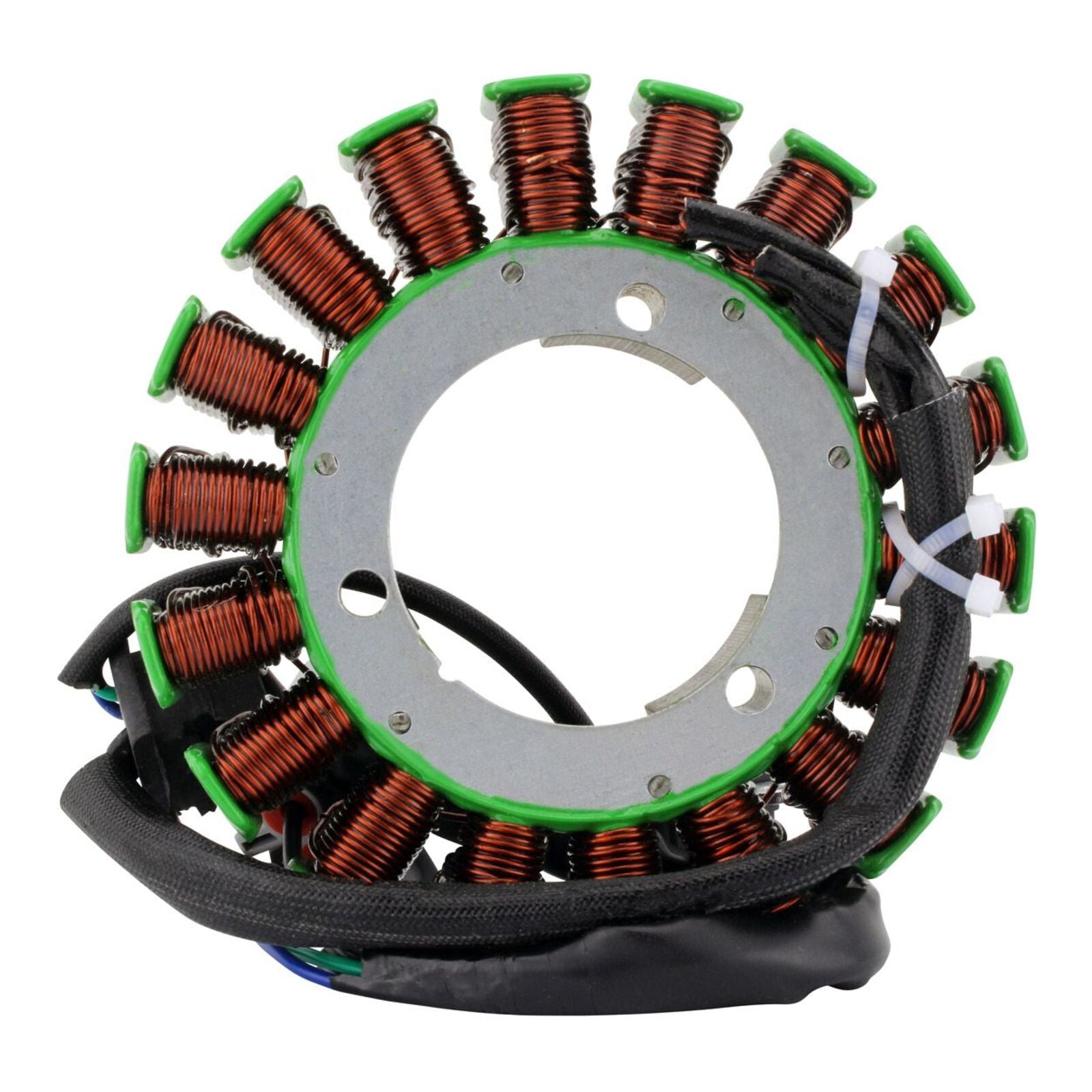

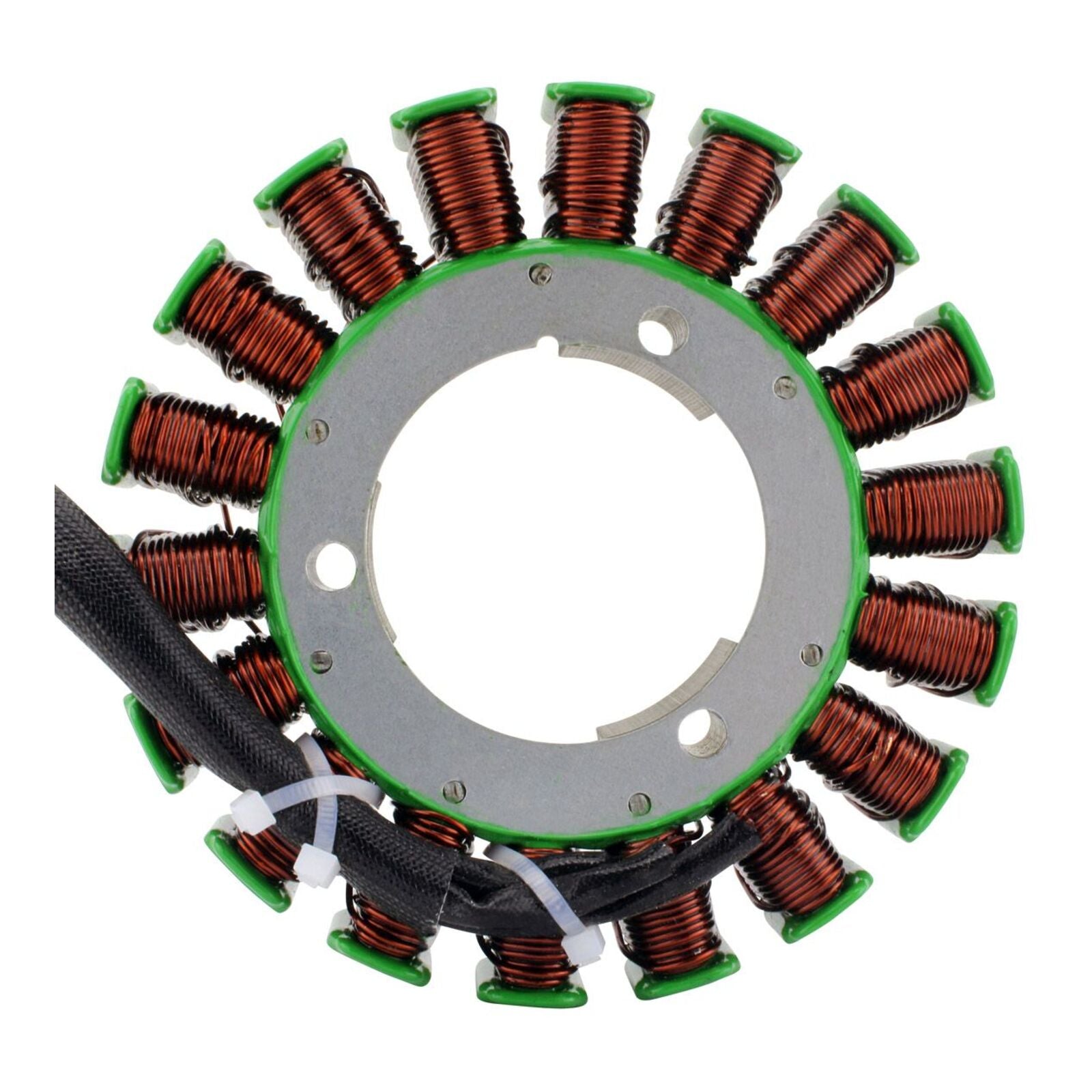

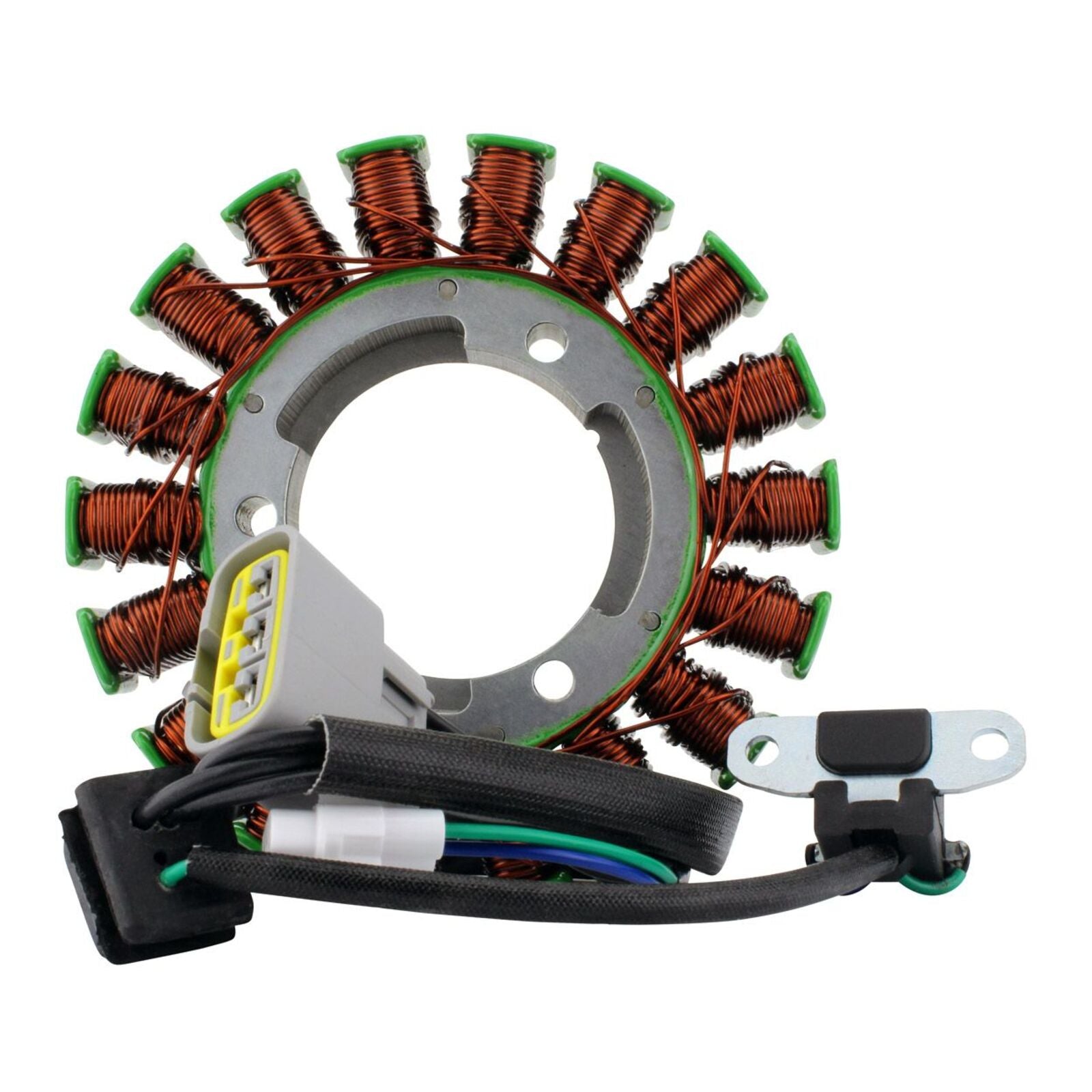

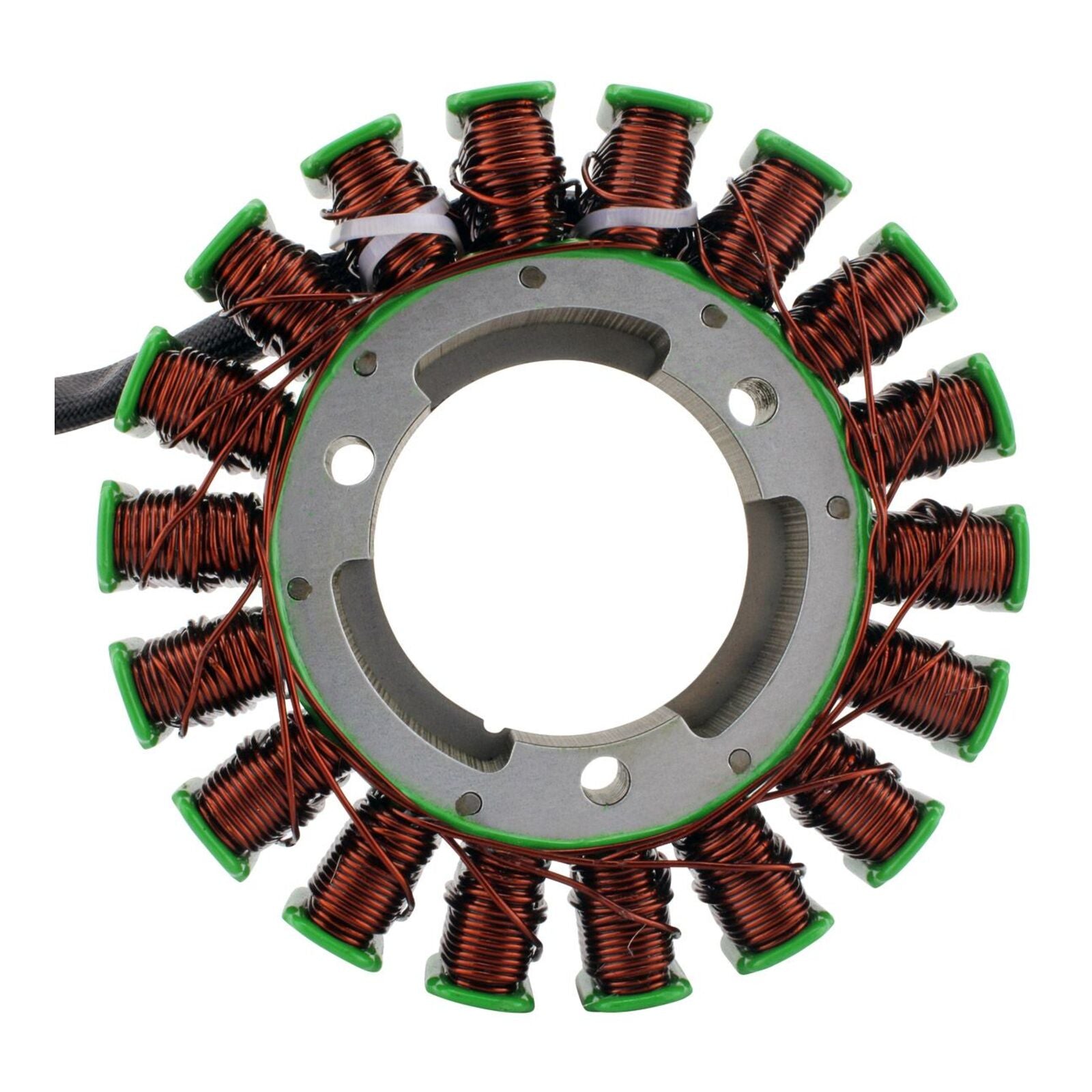

Brand new aftermarket Stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

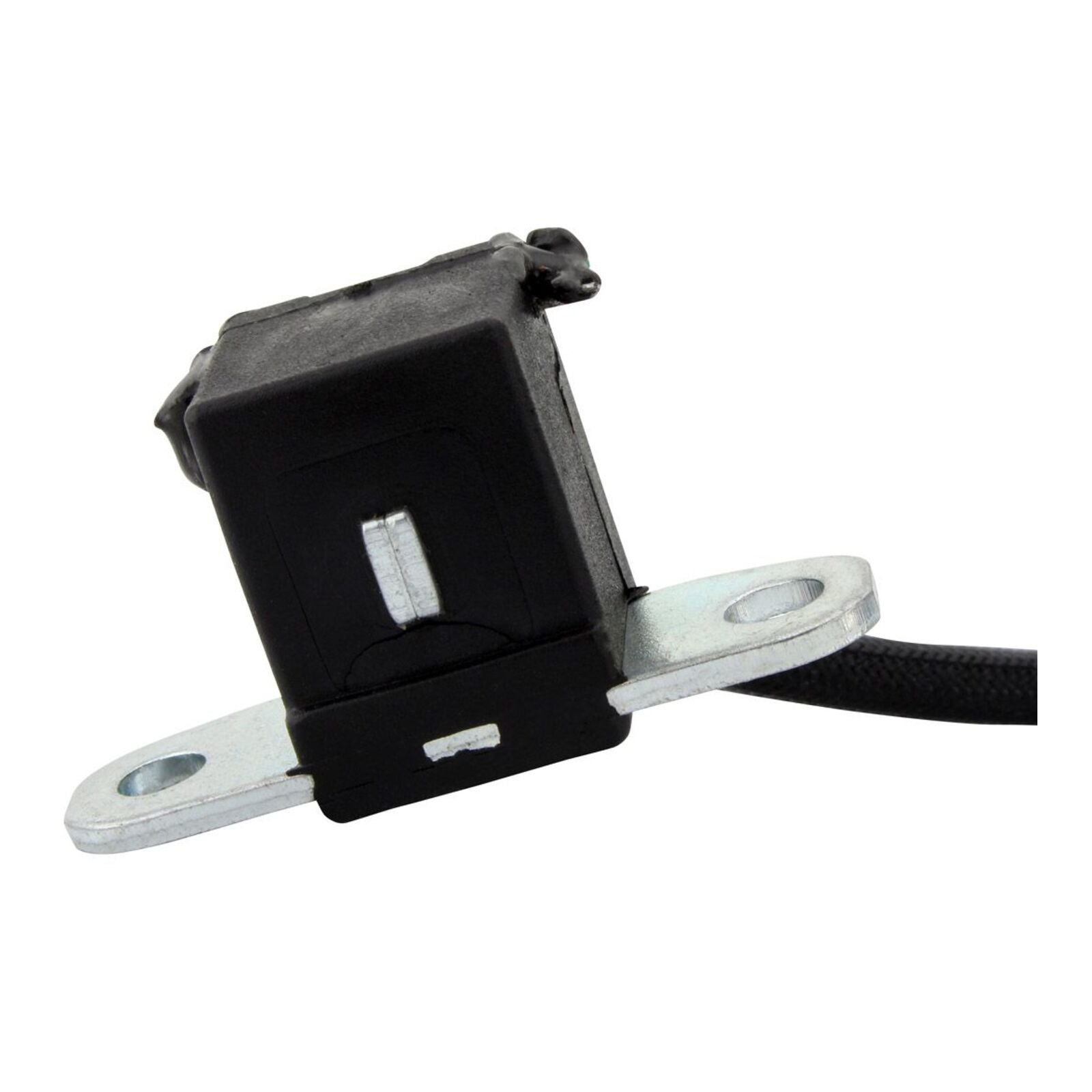

Pick up pulsar coil included

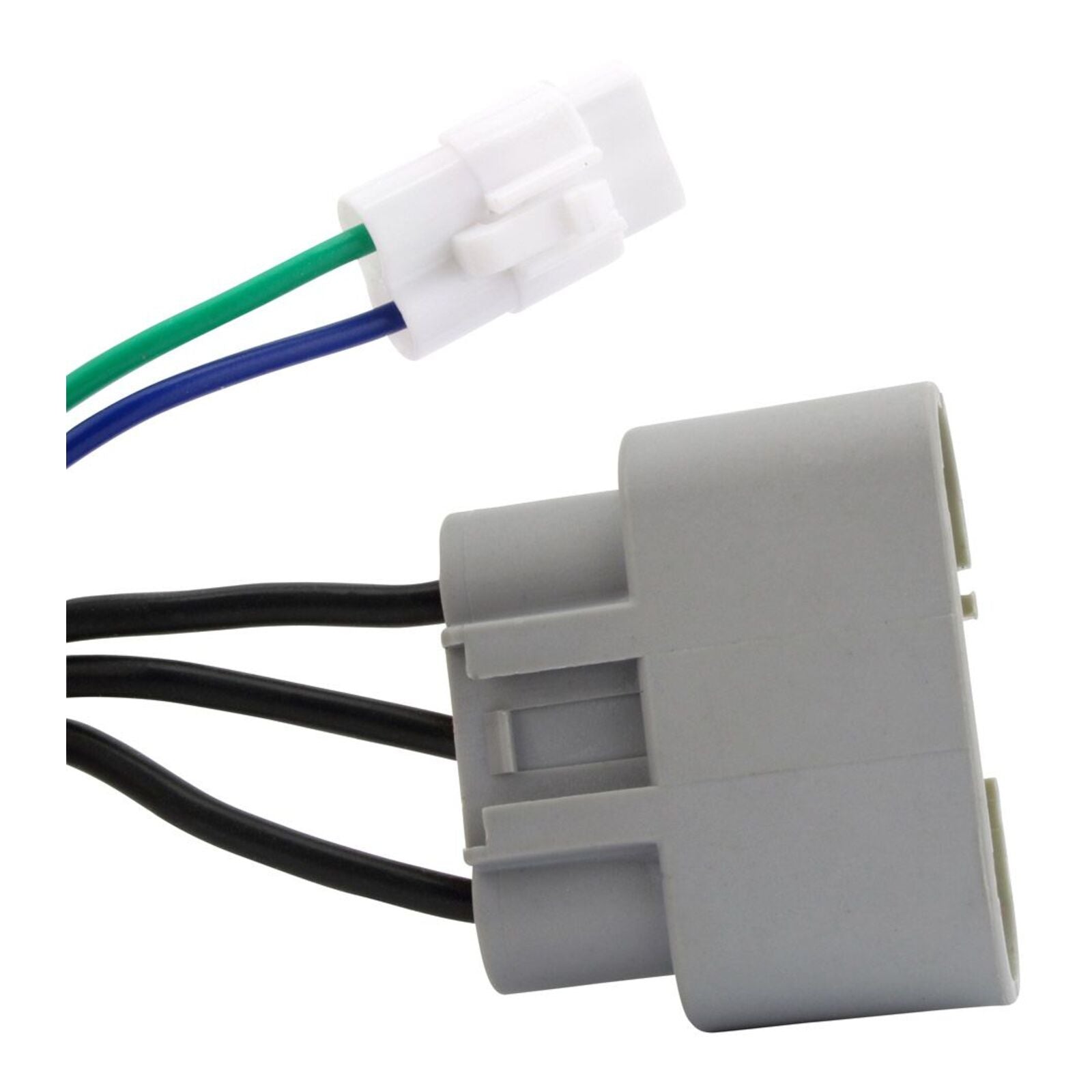

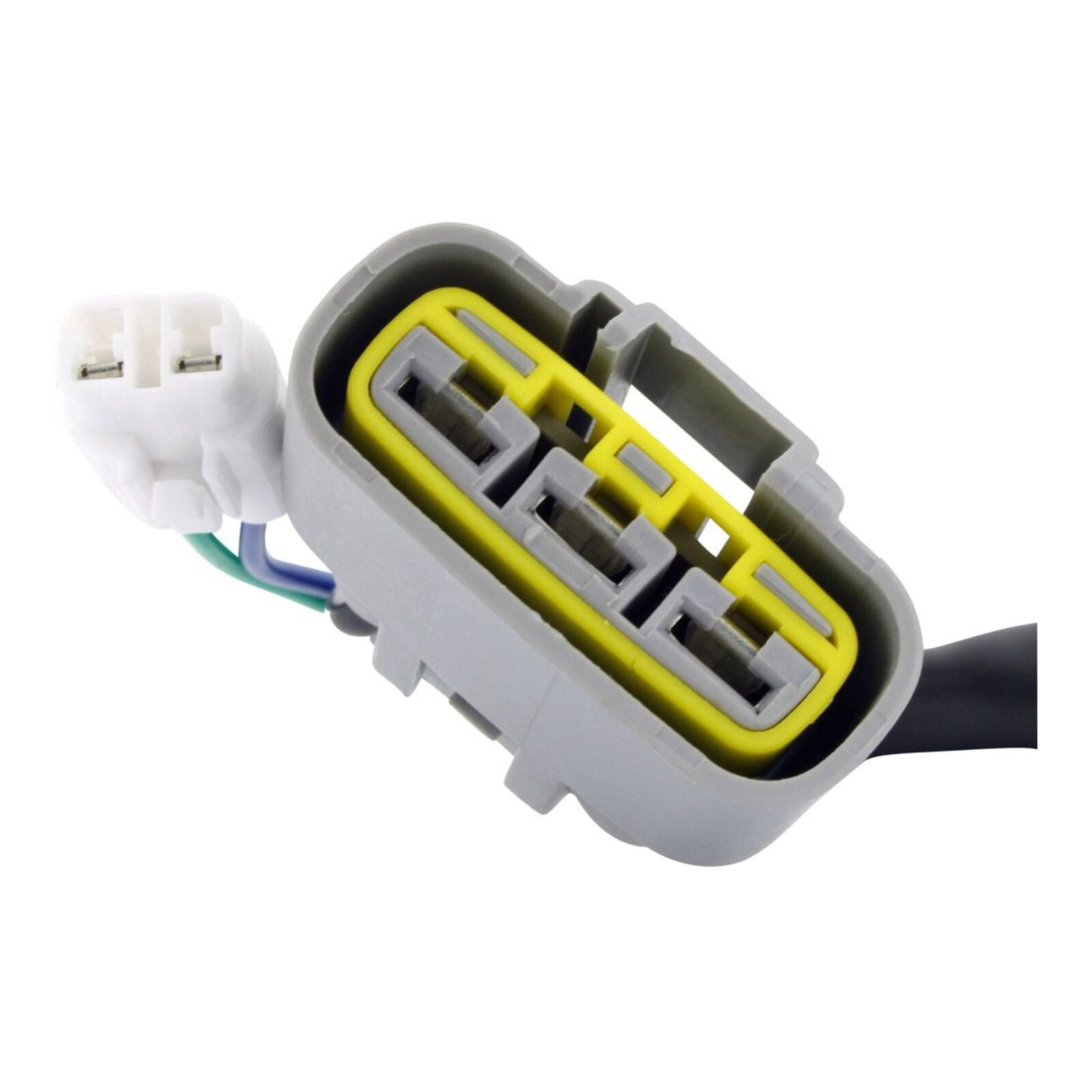

Connectors included
Rubber grommet included
All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

Interior diameter: 54 mm
Exterior diameter: 127 mm
Thickness: 19 mm
Length of wires stator to grommet: 195 mm
Length of wires grommet to plug #1 : 250 mm
Length of wires grommet to plug #2 : 270 mm
Length of pickup coil's wire to grommet: 130 mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18

Wire to wire resistance:

Alternator: Black to Black = 0.6ohms +-20%
Alternator: to ground = O.L
Pickup: Green to Blue = 196ohms +-20%

Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
