Name: GENERATOR STATOR HONDA TRX520FA6 20-22 (RMS010-107181)
Brand: RMSTATOR
SKU: RMS010107181
Price: 509.89 NZD
Availability: OutOfStock

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107181.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107181_1.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107181_10.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107181_3.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107181_4.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107181_5.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107181_6.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107181_7.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107181_8.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107181_9.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010107181_2.JPG

$509.89

Shipping calculated at checkout.

Quantity

Most products are not stocked instore. Please contact us to confirm instore availability.

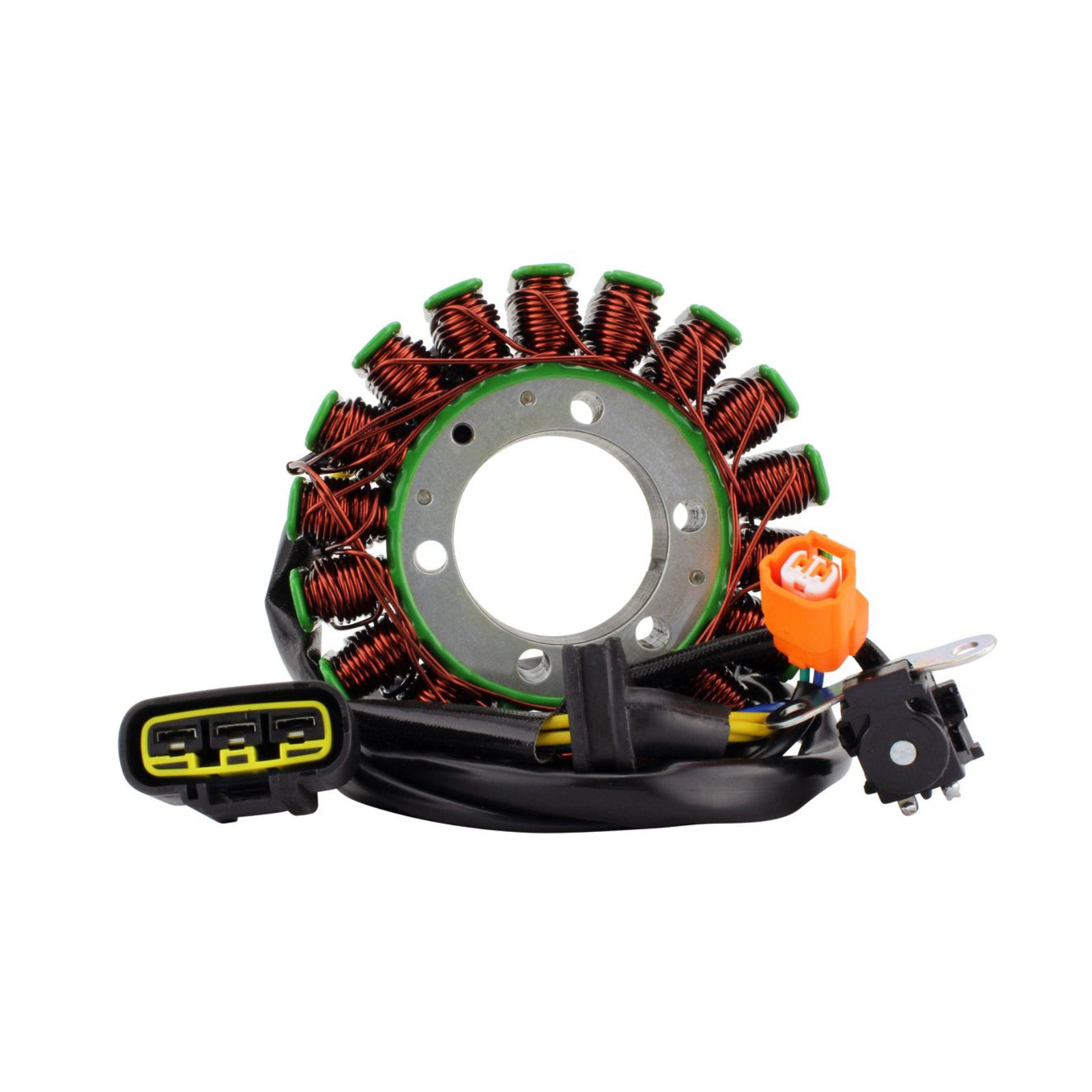

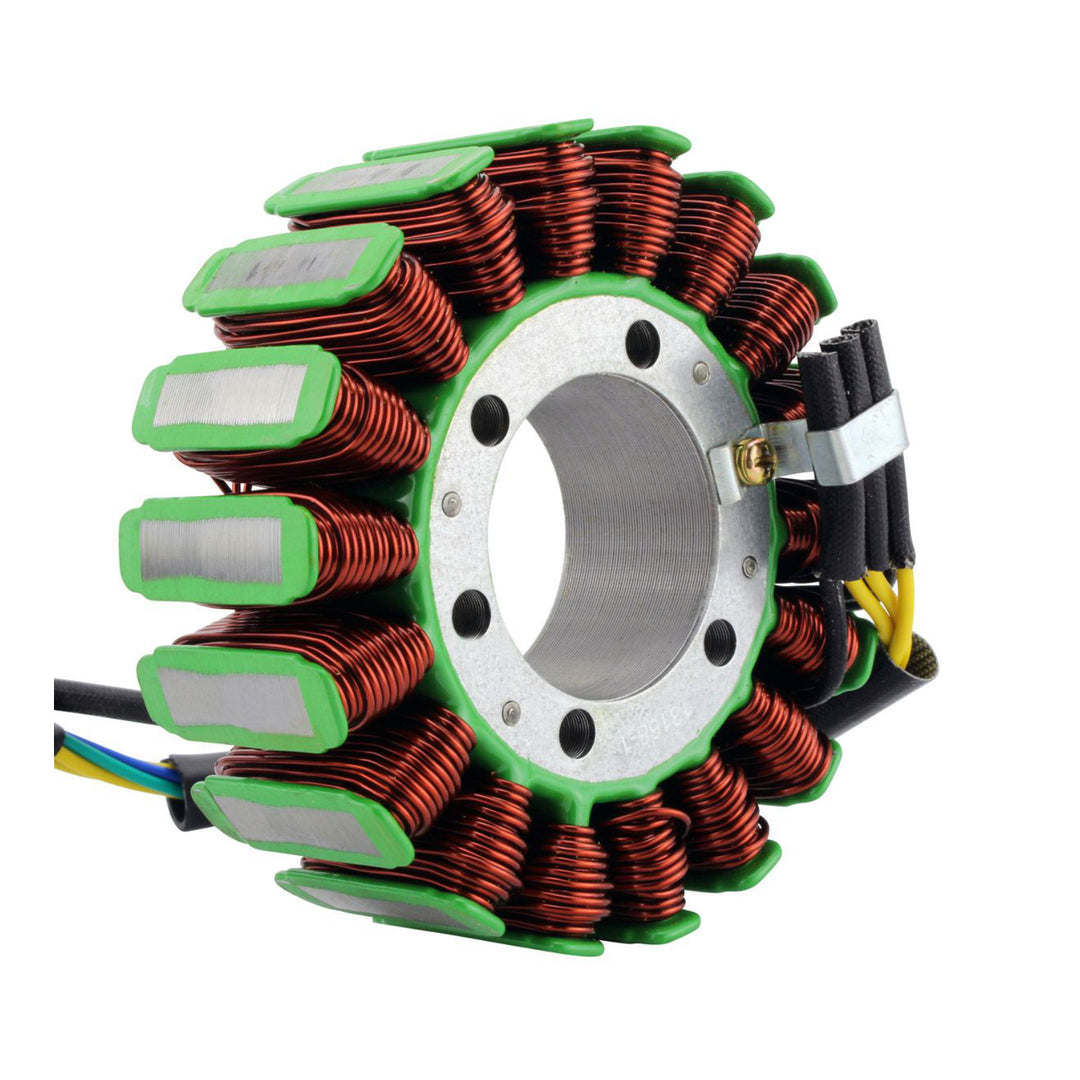

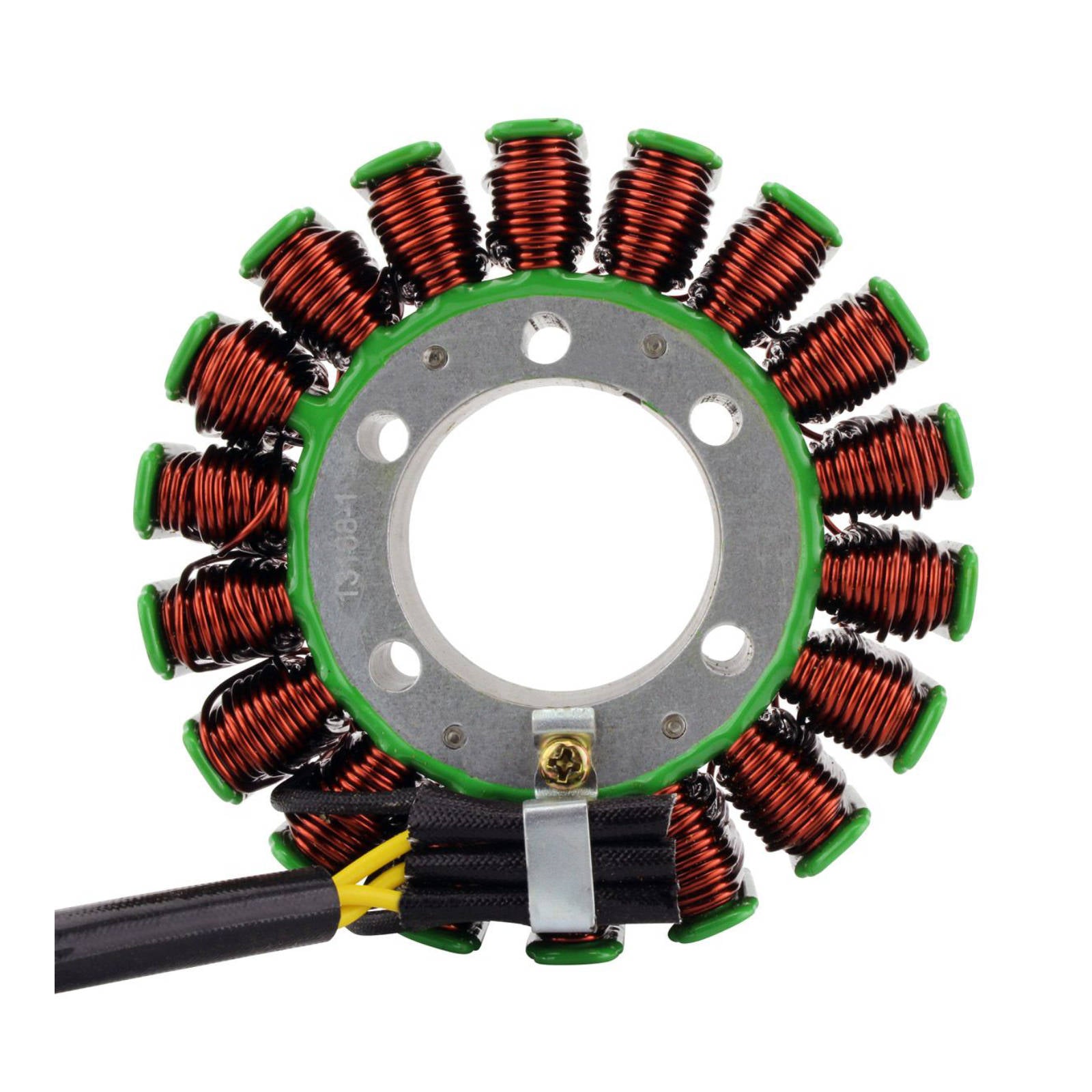

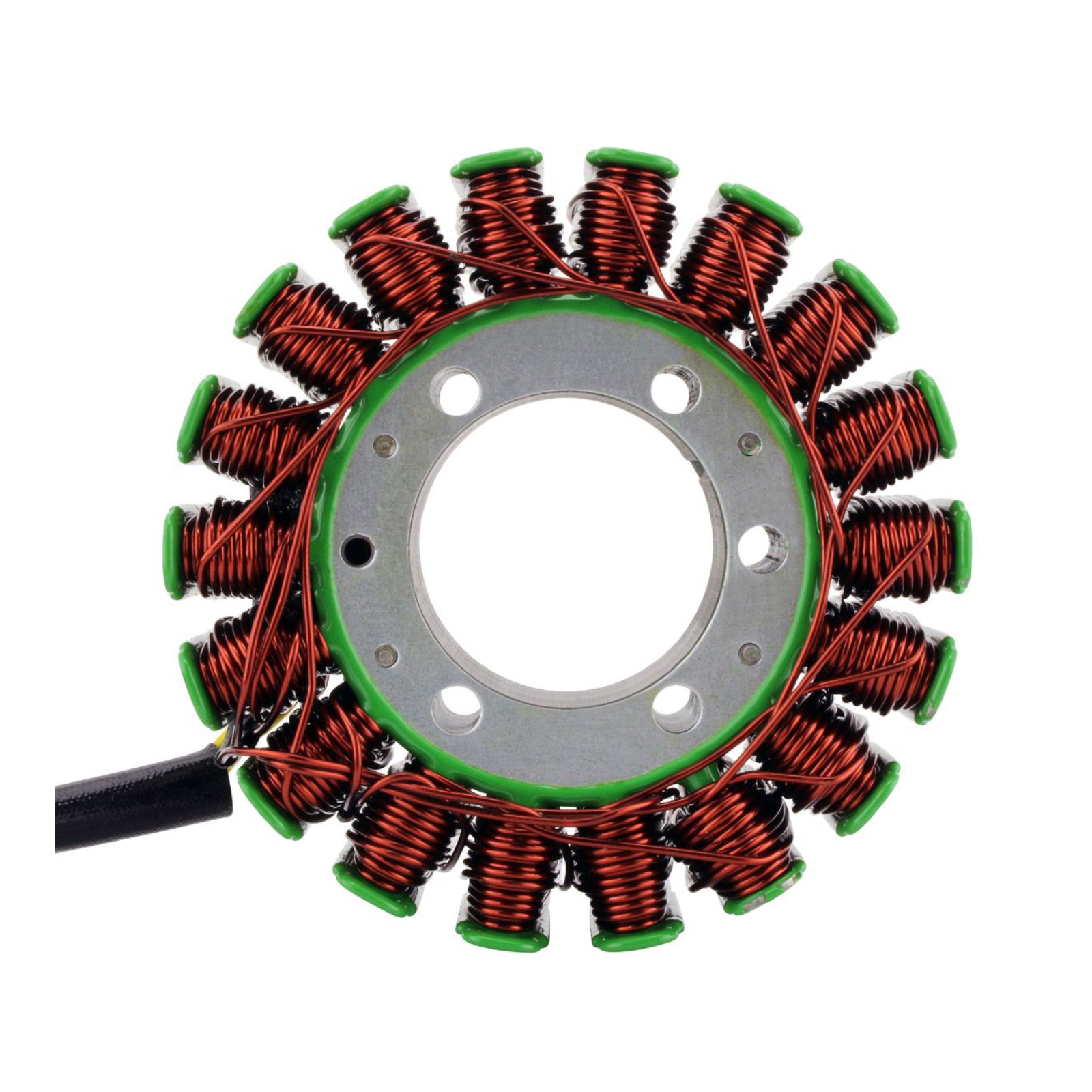

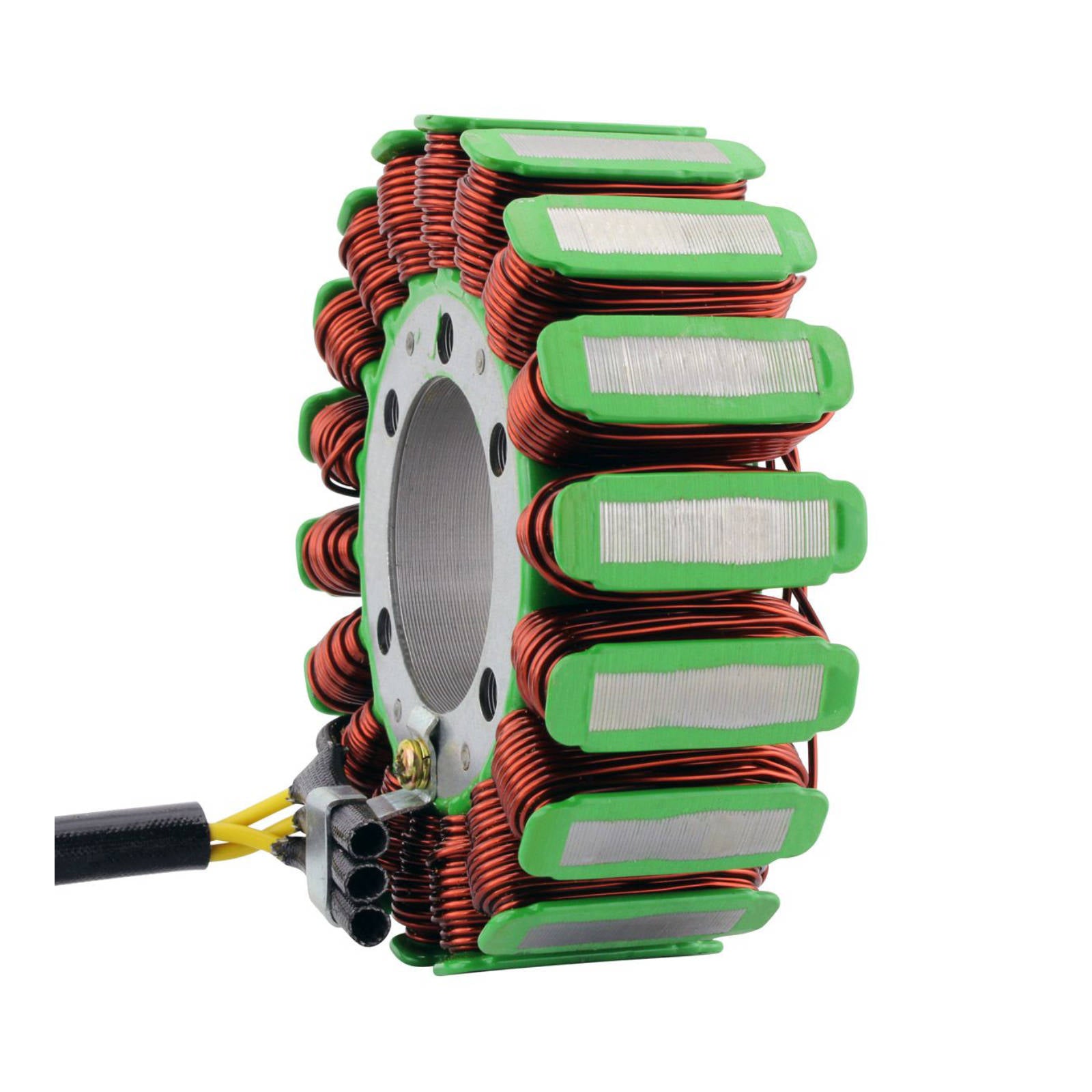

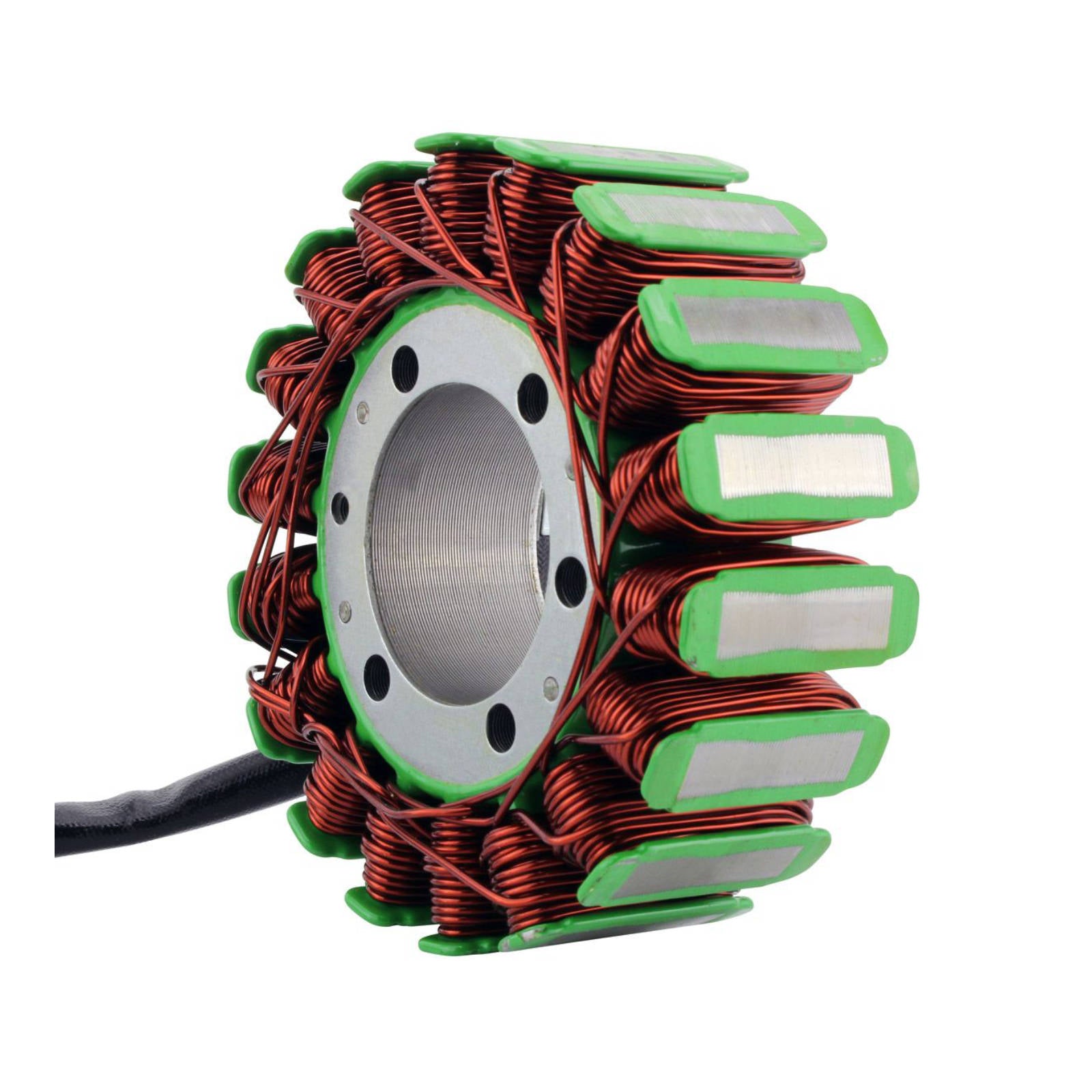

Plug-and-play replacement stator from RM Stator.

Dimensions:

Interior diameter: 42 mm
Exterior diameter: 107 mm
Thickness: 31 mm
Length of wires stator to grommet: 120 mm
Length of wires grommet to plug #1: 335 mm
Length of wires grommet to plug #2: 855 mm
Length of pickup coil's wire to grommet: 85 mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
- Alternator: Between each Yellow = 0.6 ohms +-20%
- Pickup: Blue to Green = 235 ohms +-20%

Details:

Plug-and-play, direct fit, easy installation

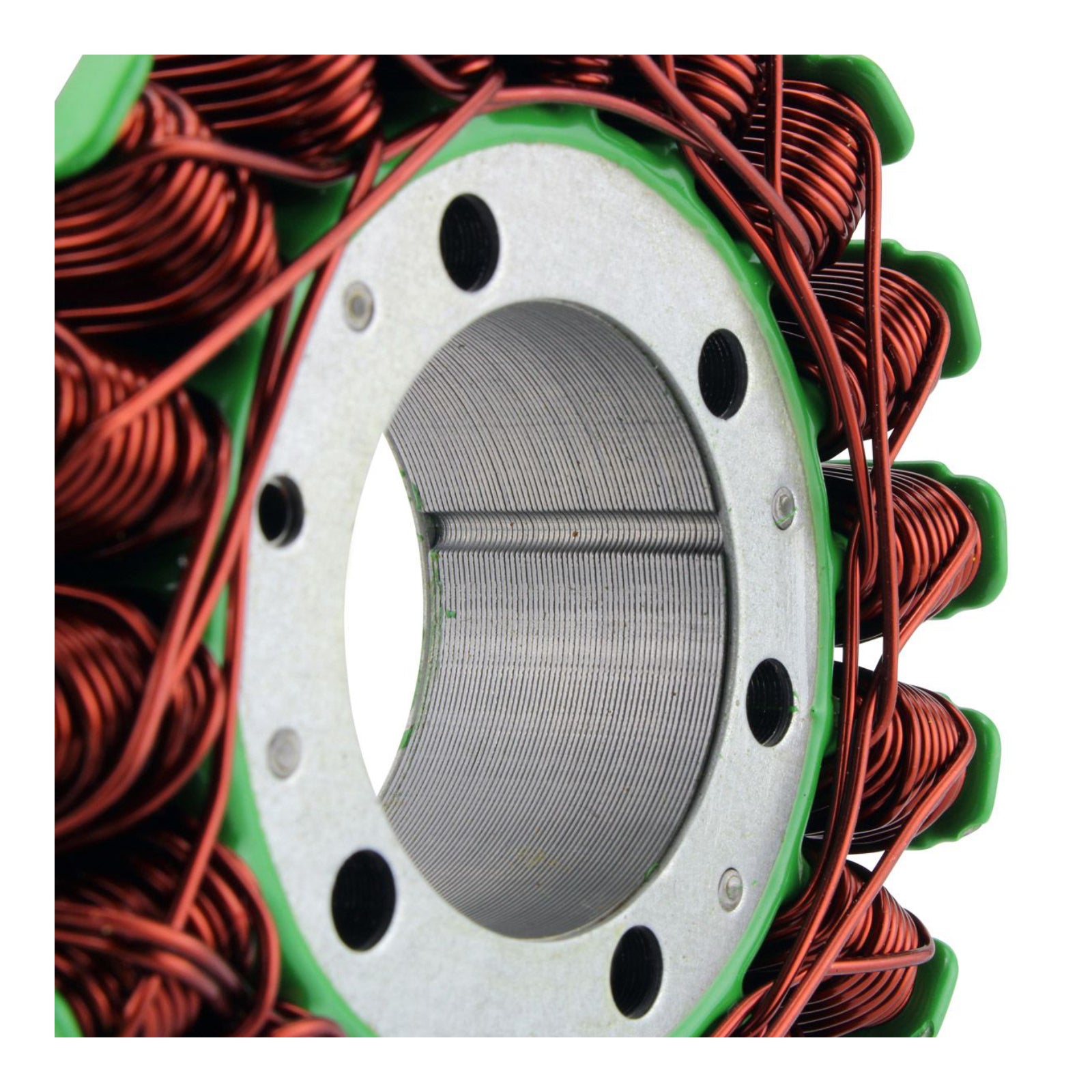

Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

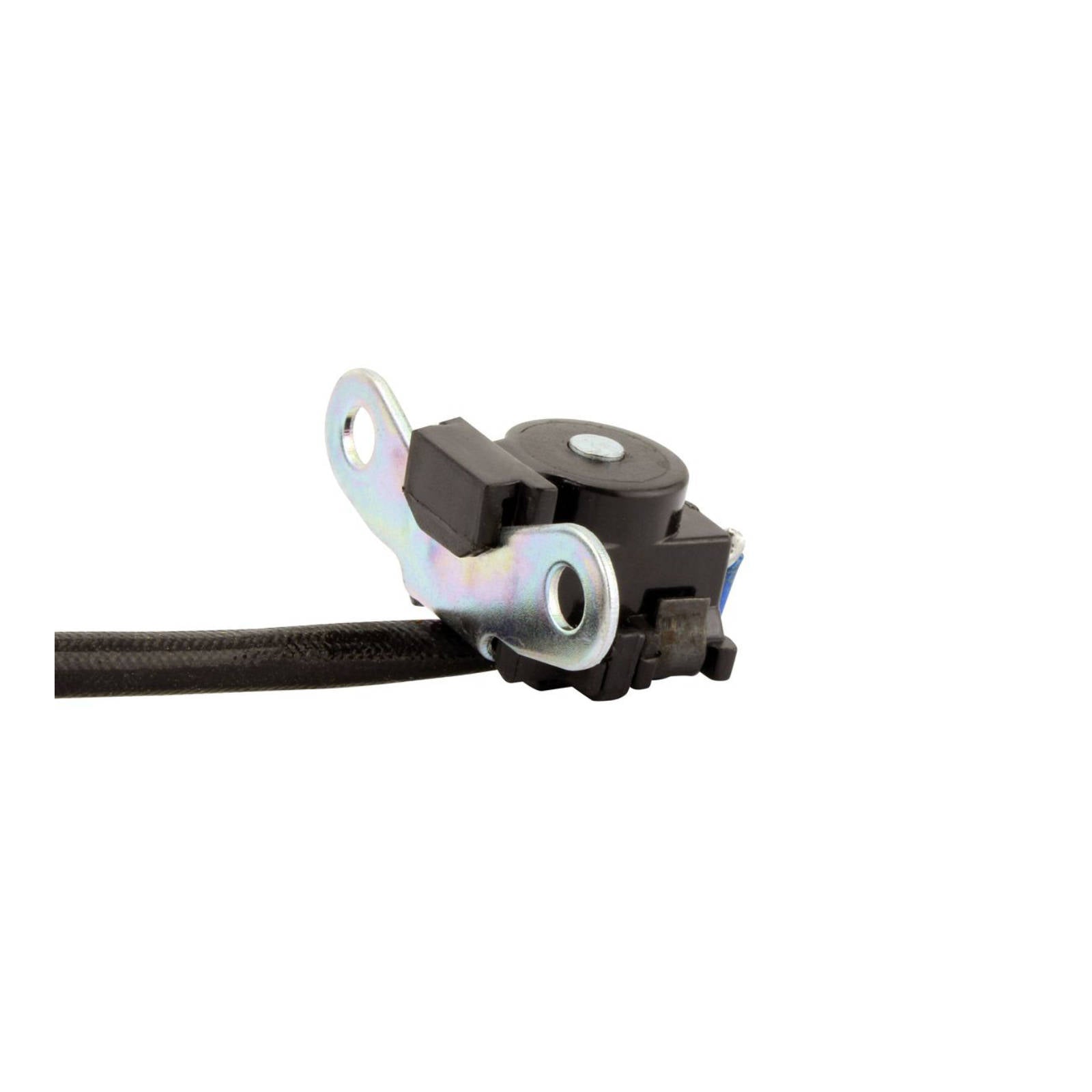

Pick up pulsar coil included

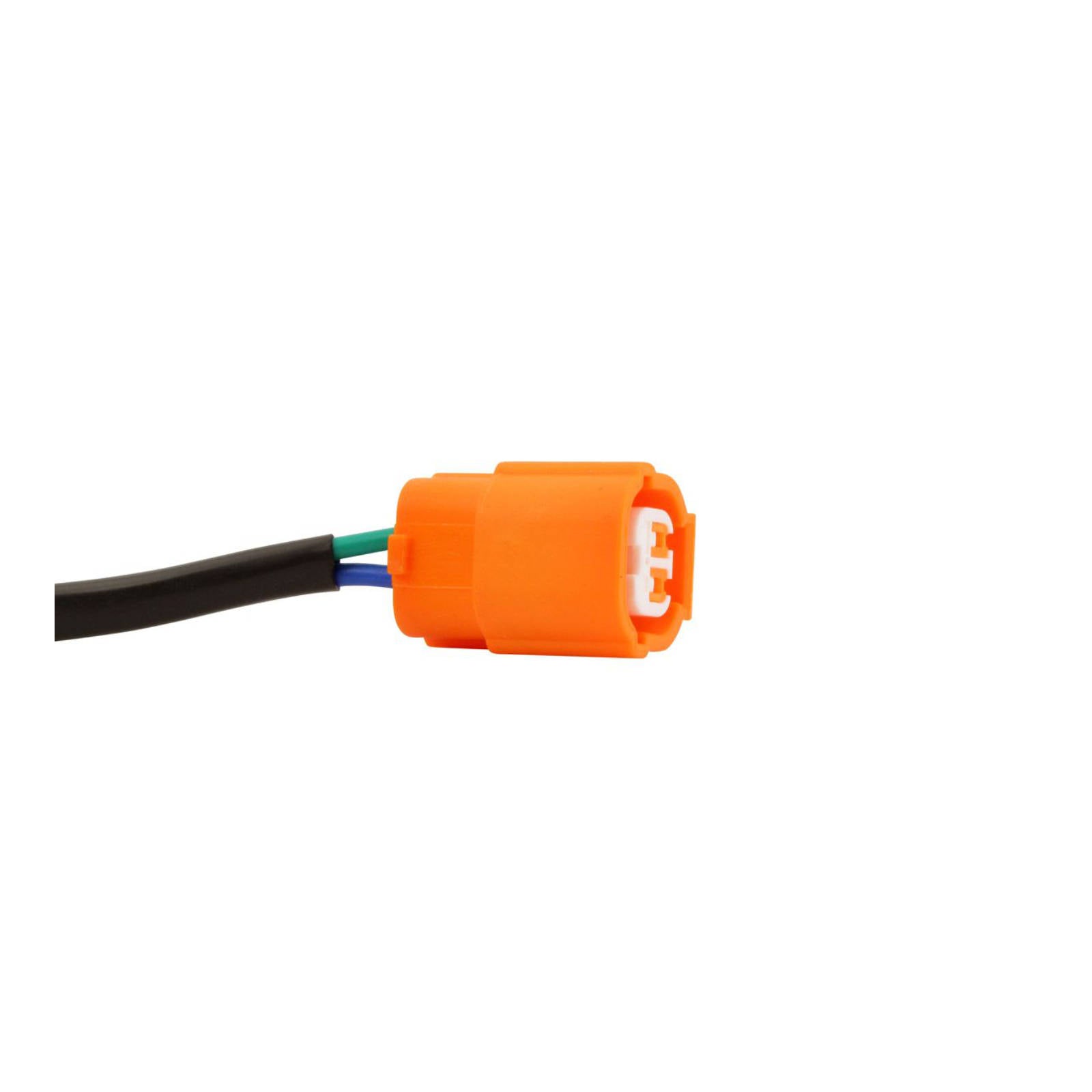

Connectors included

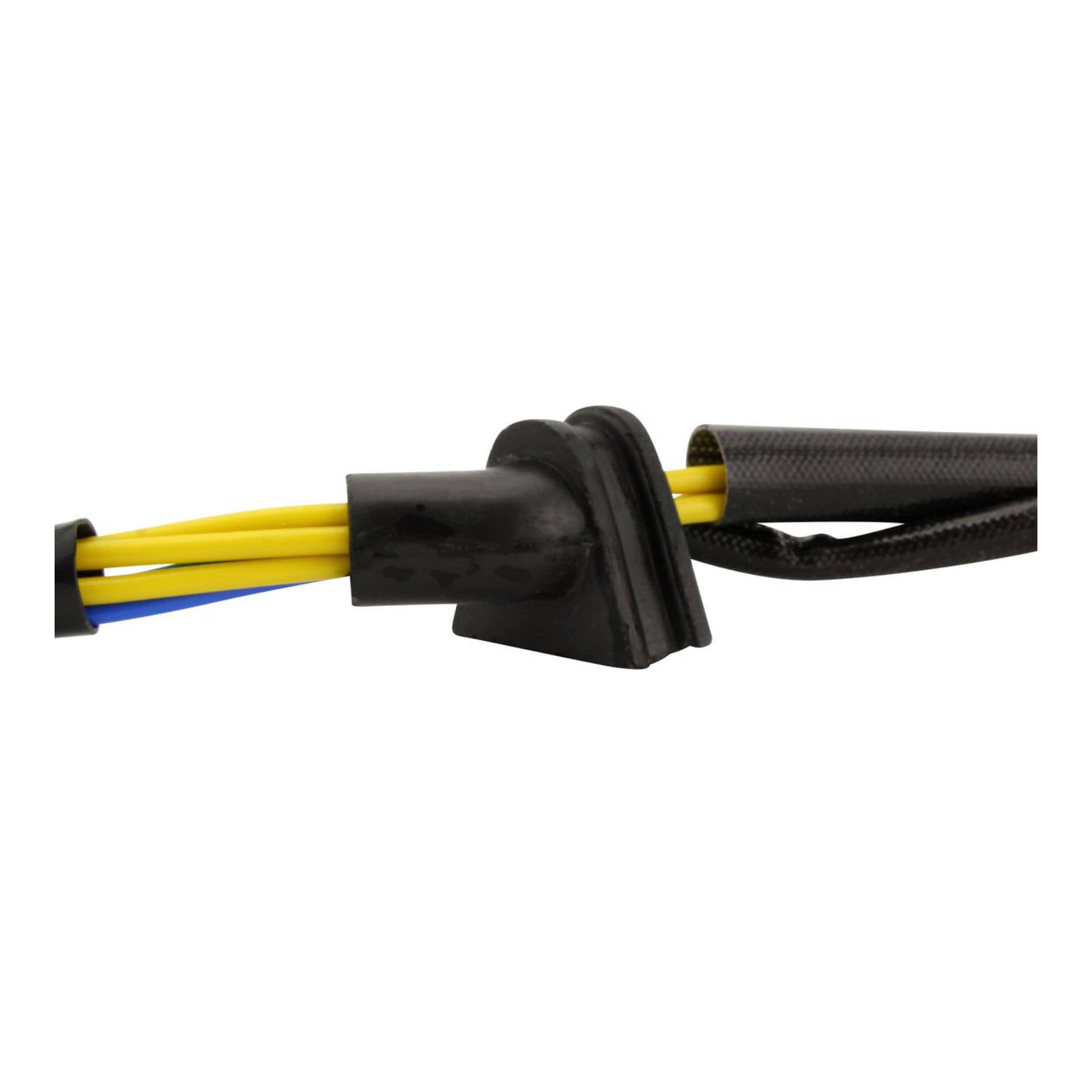

Rubber grommet included
All products shipped are tested
