Name: STATOR YAM YFM 700 GRIZZLY YFM 700 KODIAK 4X4 '16-18
Brand: RMSTATOR
SKU: RMS010104902
Price: 449.9 NZD
Availability: OutOfStock

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010104902.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010104902_1.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010104902_10.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010104902_2.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010104902_3.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010104902_4.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010104902_5.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010104902_6.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010104902_7.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010104902_8.JPG

https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS010104902_9.JPG

$449.90

Shipping calculated at checkout.

Quantity

Most products are not stocked instore. Please contact us to confirm instore availability.

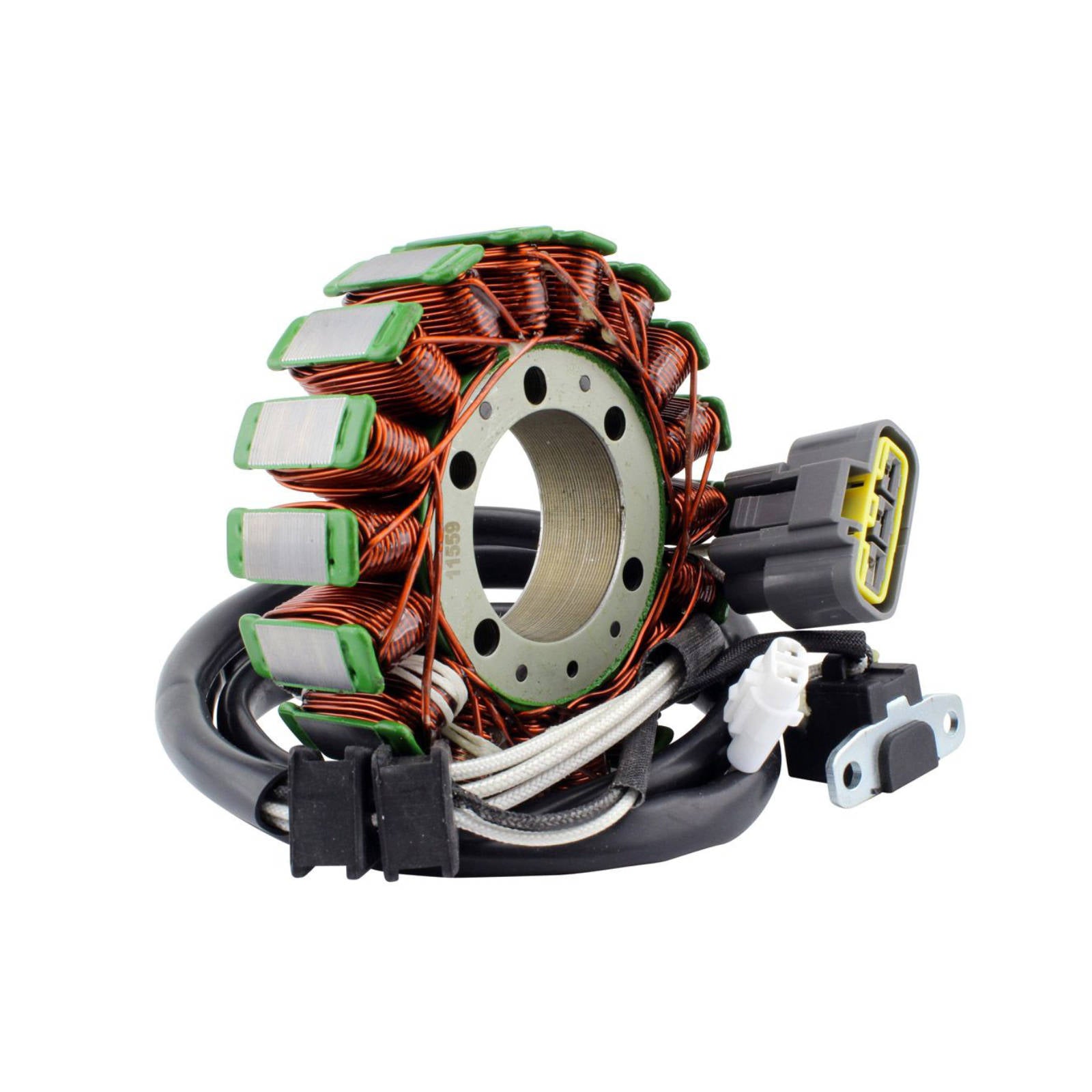

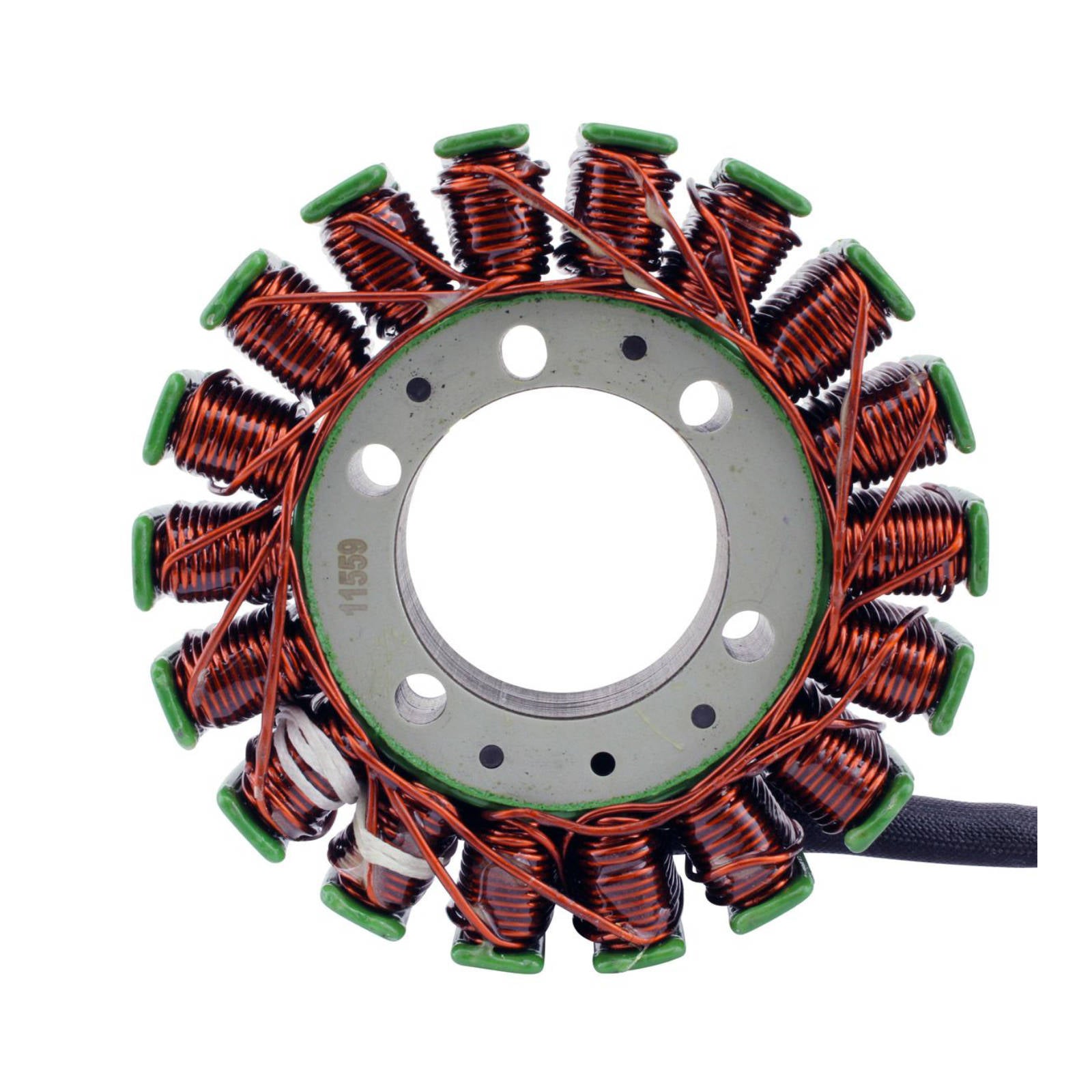

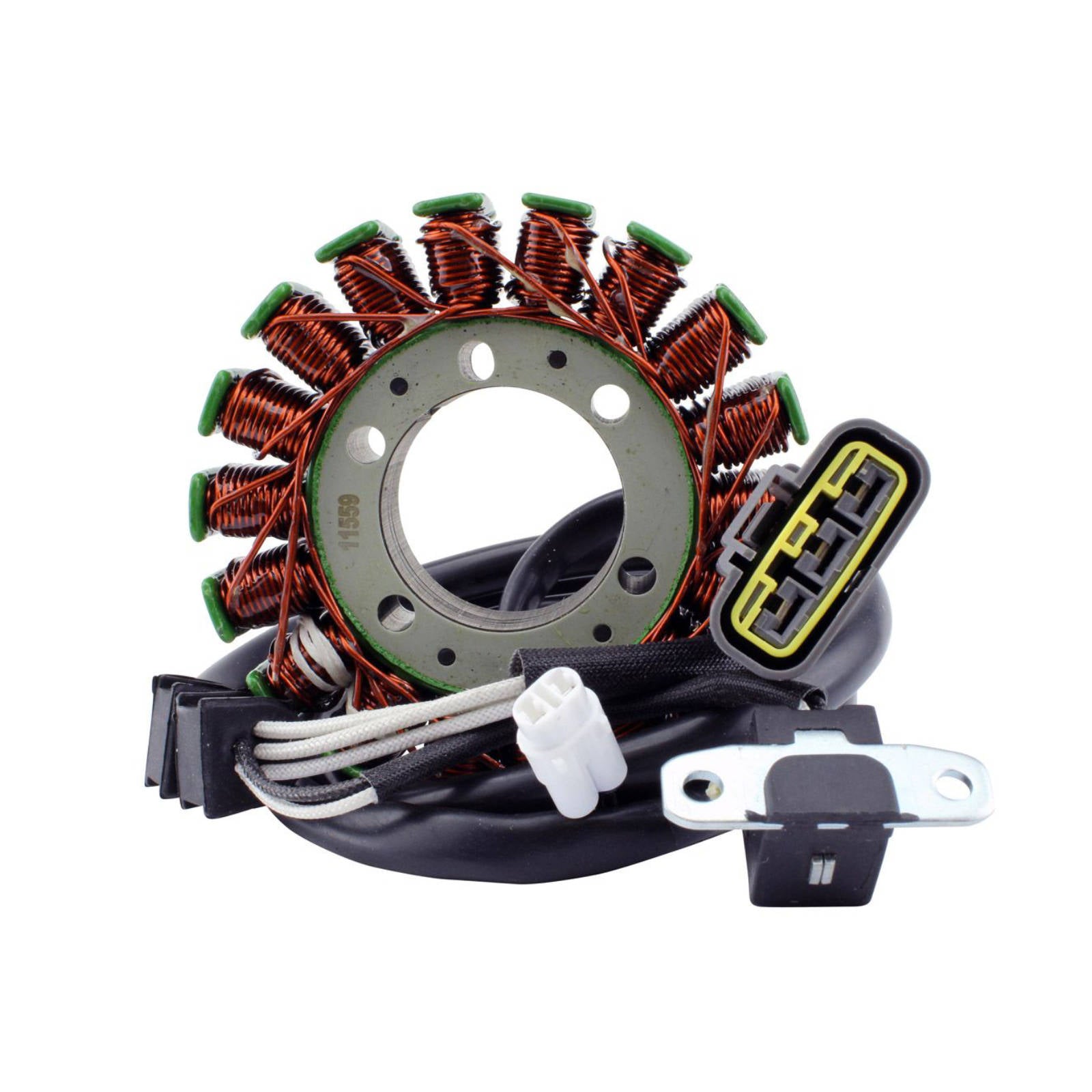

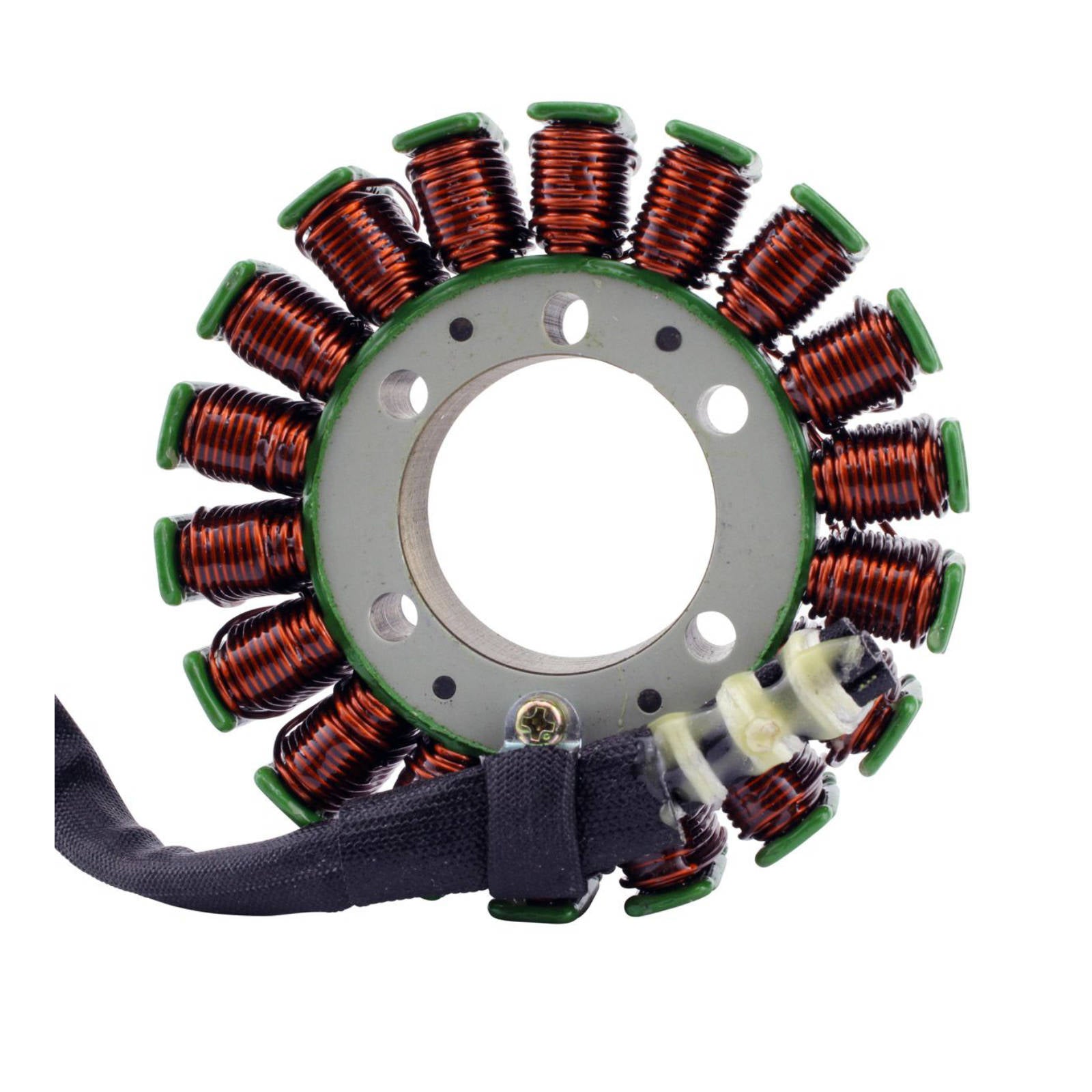

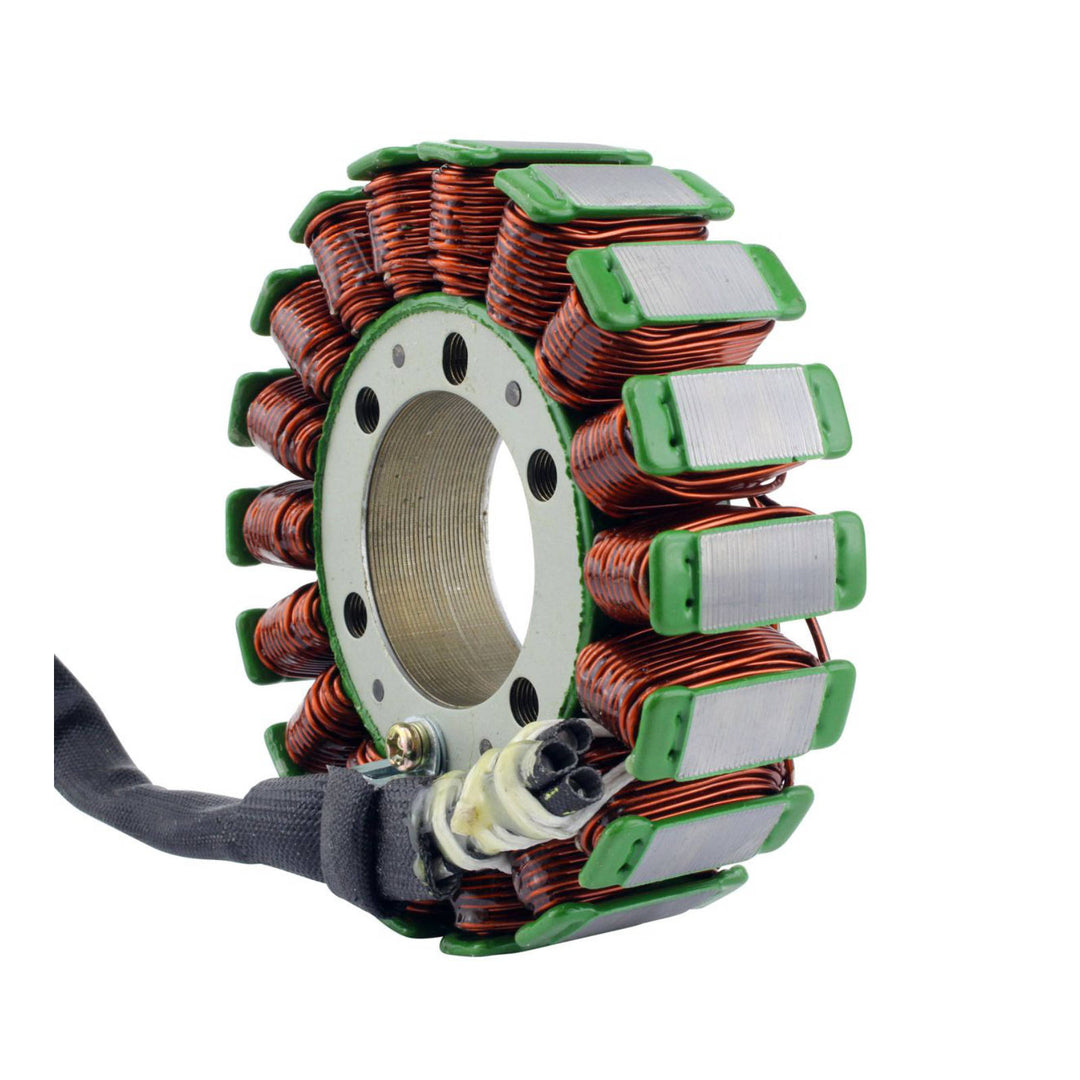

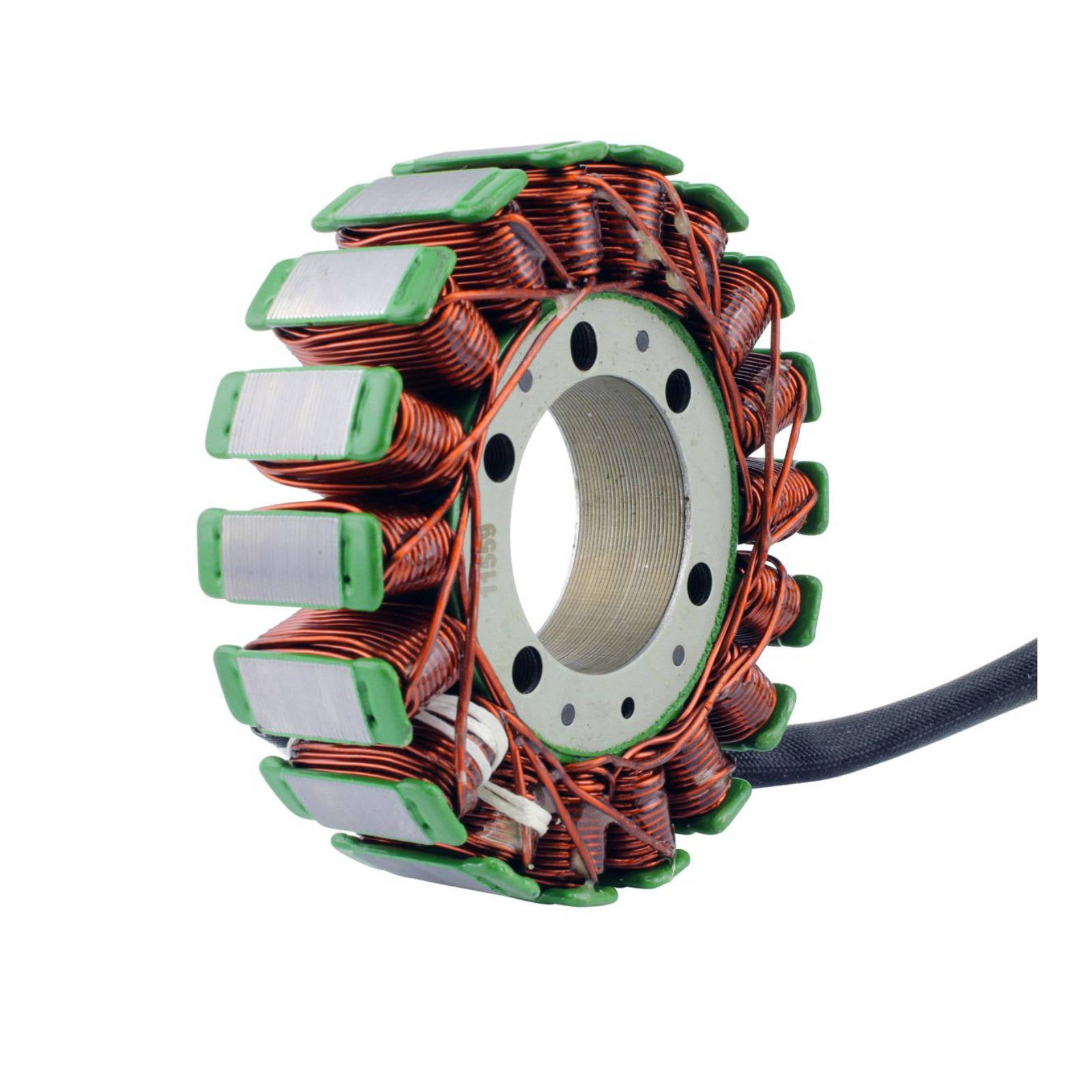

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

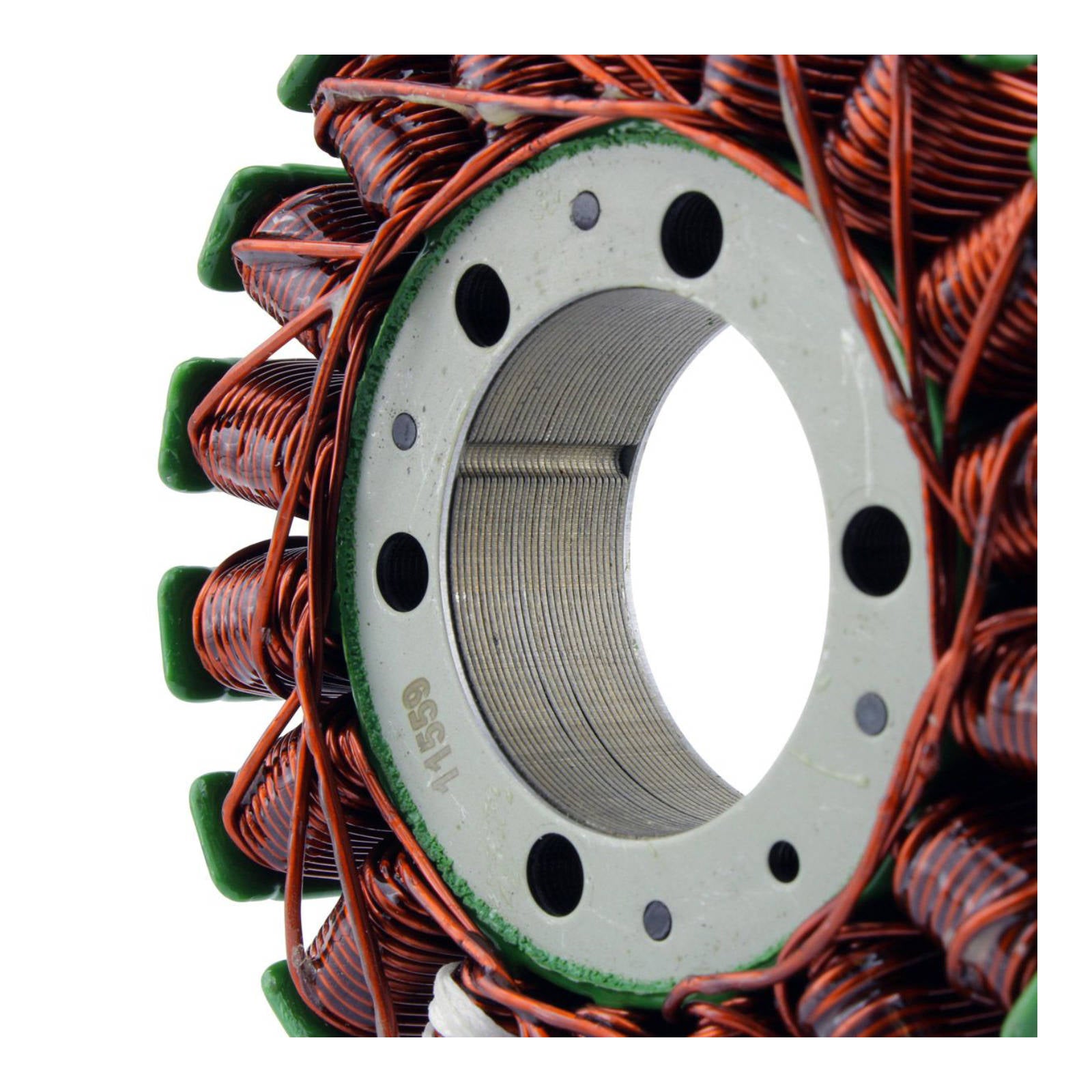

Interior diameter: 42mm
Exterior diameter: 66mm

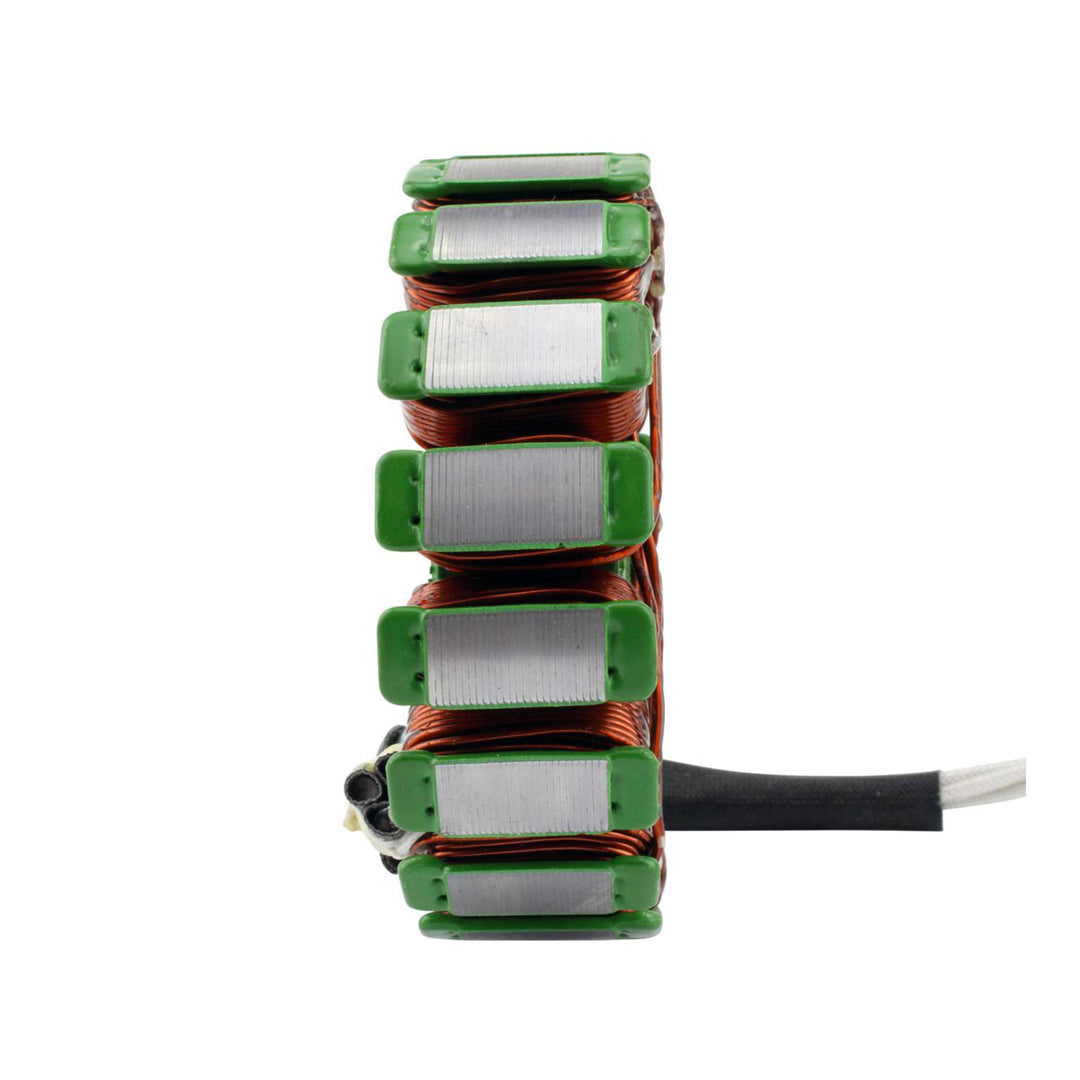

Thickness: 22mm
Length of wires stator to grommet: 130mm
Length of wires grommet to plug: 1096mm
Length of pickup coil's wire to grommet: 115mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
- Alternator: Between each white = 0.4 ohms +-20%
- Source: Black to White = 200 ohms +-20%

Details:

Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

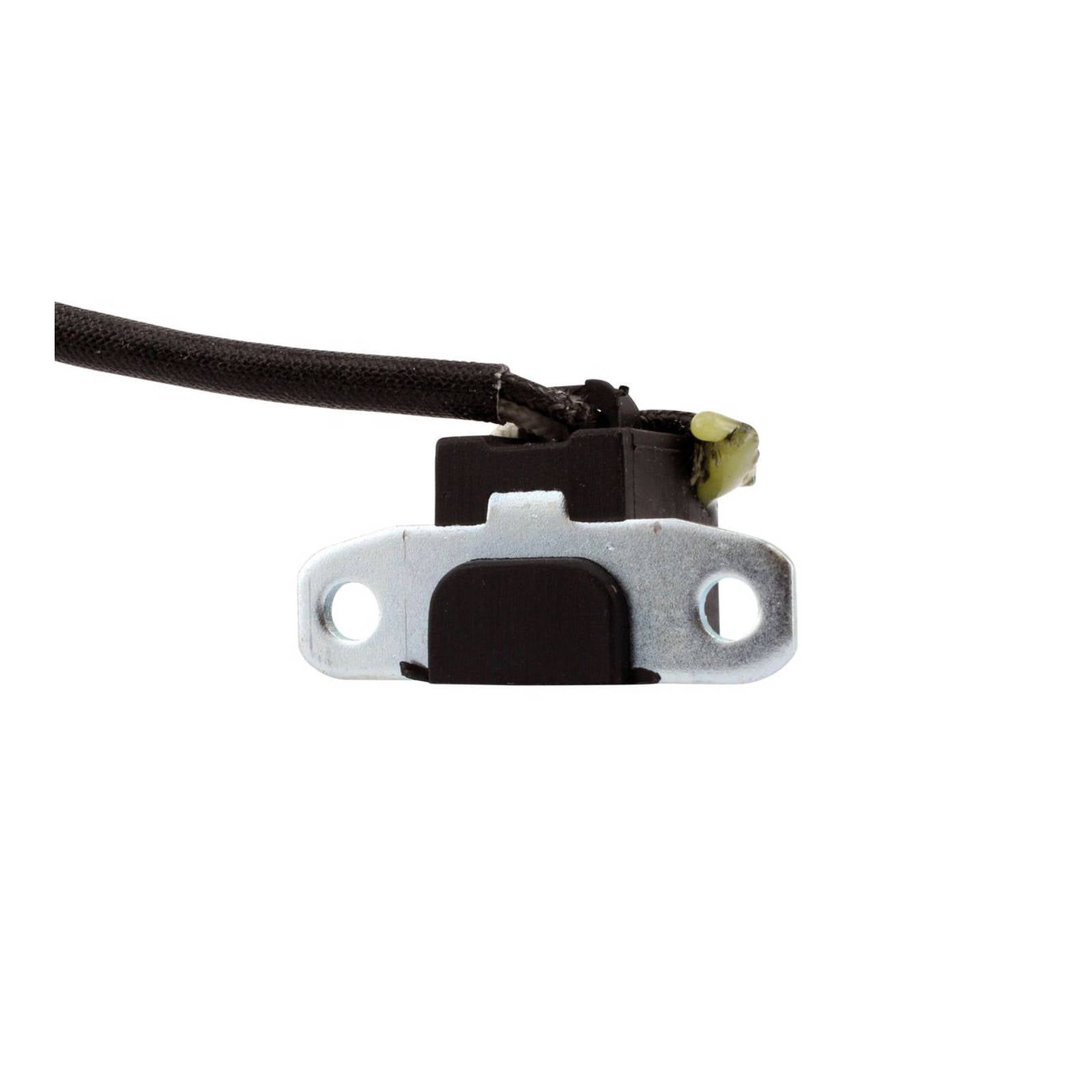

Pick up pulsar coil included

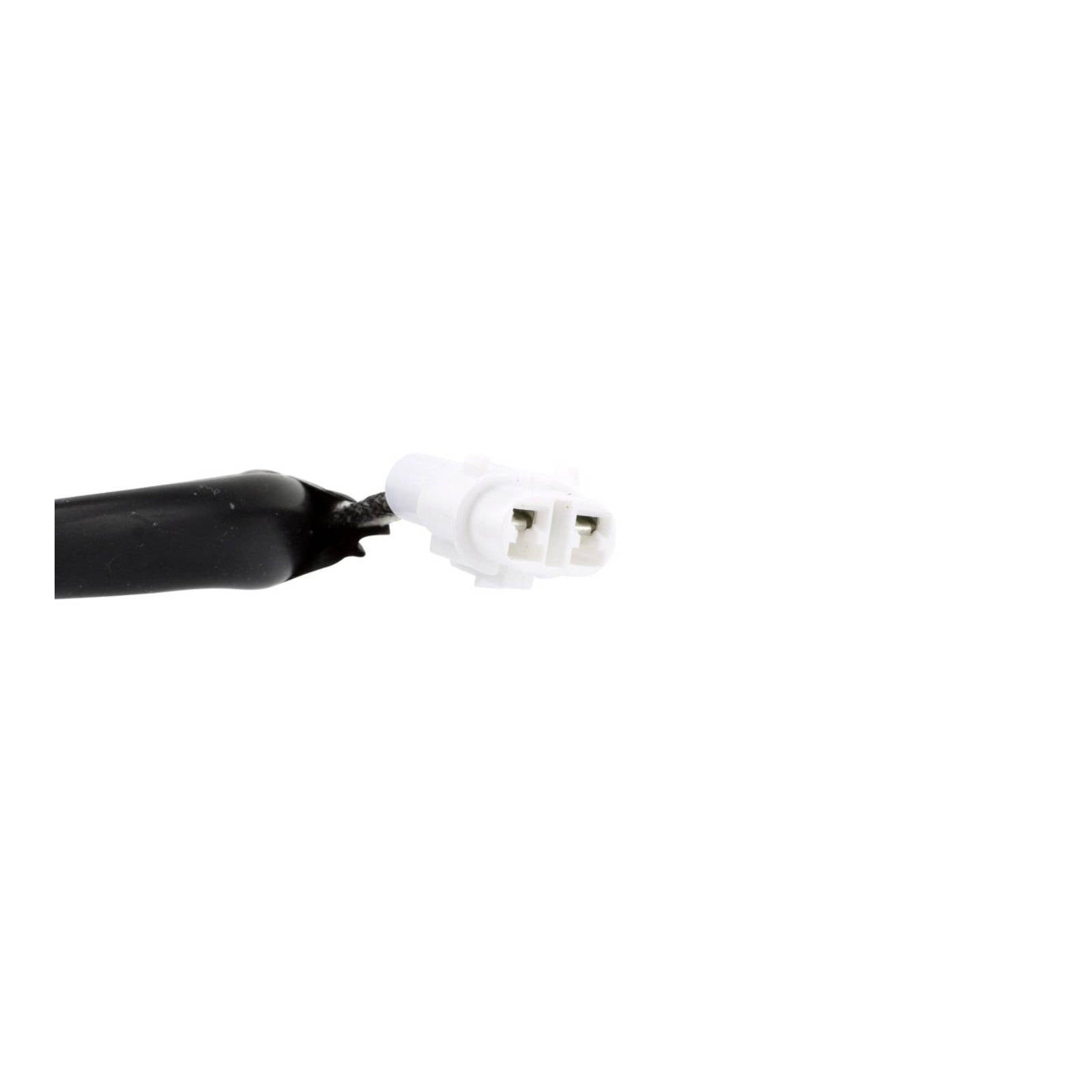

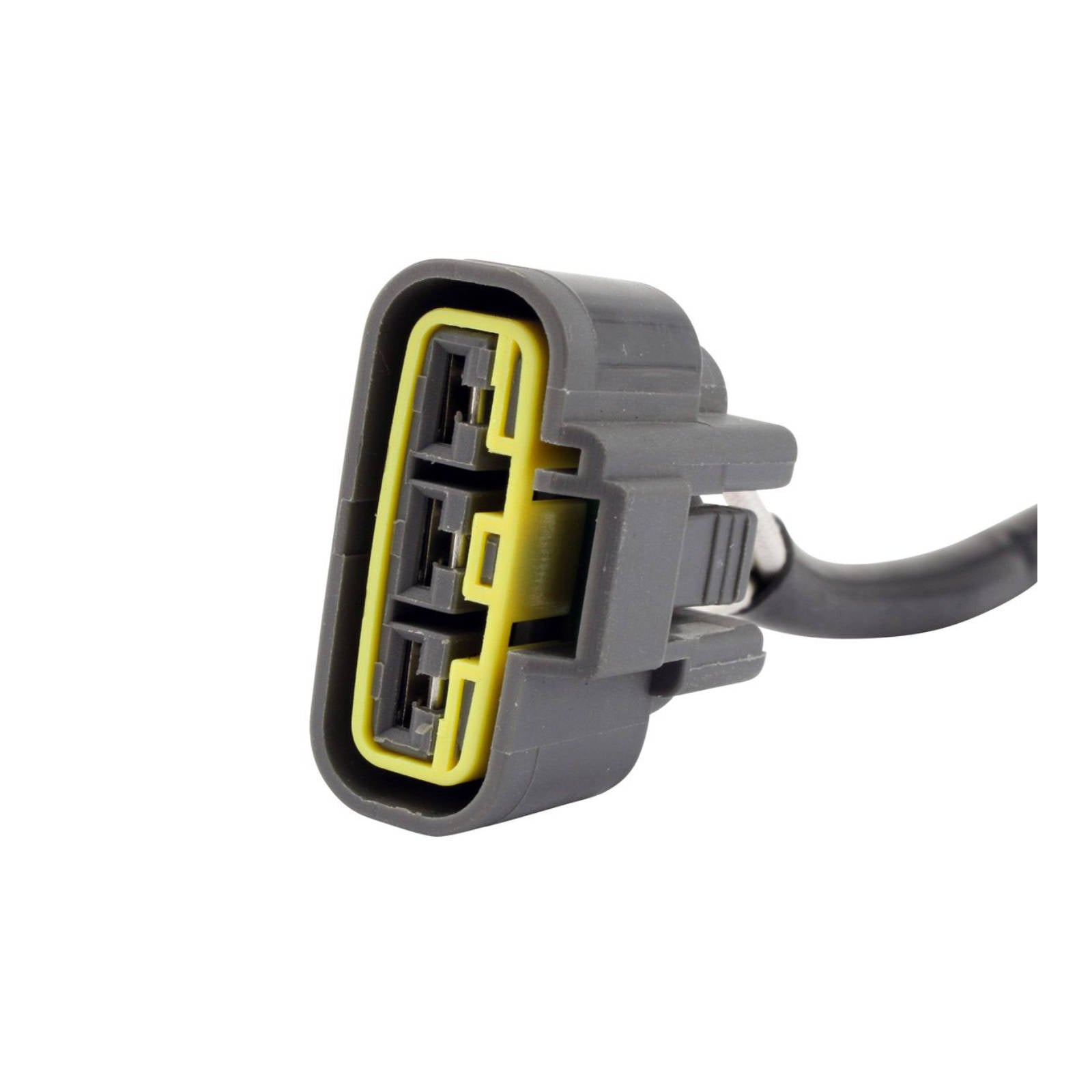

Connector included
Rubber grommet included
All products shipped are tested

Direct replacement to your original unit.

Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
All products shipped are tested

Dimensions:

Interior diameter: 42 mm
Exterior diameter: 66 mm
Thickness: 22 mm
Length of wires stator to grommet: 130 mm
Length of wires grommet to plug: 1096 mm
Length of pickup coil's wire to grommet: 115 mm

Other Specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18

Wire to Wire Resistance:

Alternator: Between each white = 0.4 ohms ±20%
Source: Black to White = 200 ohms ±20%
