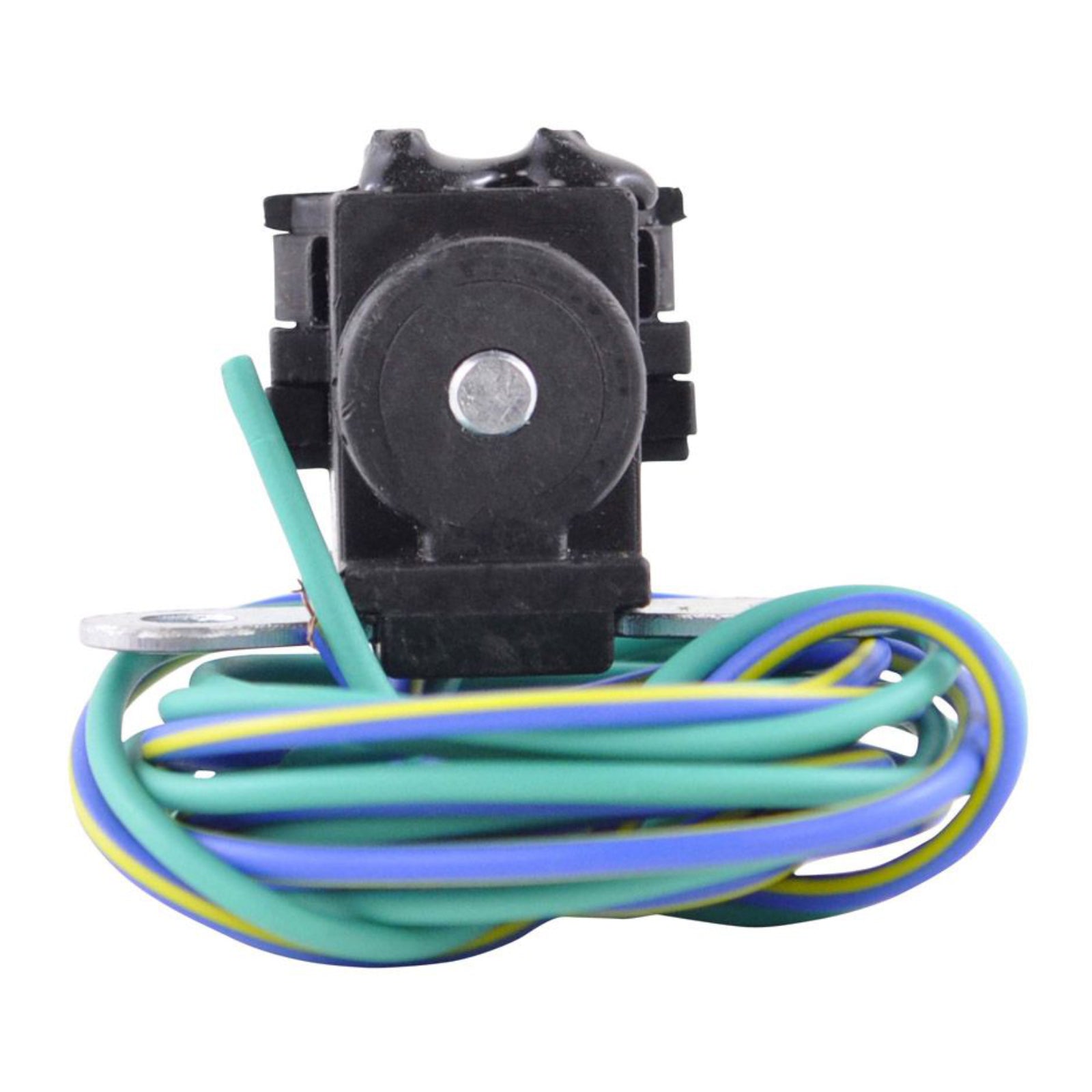

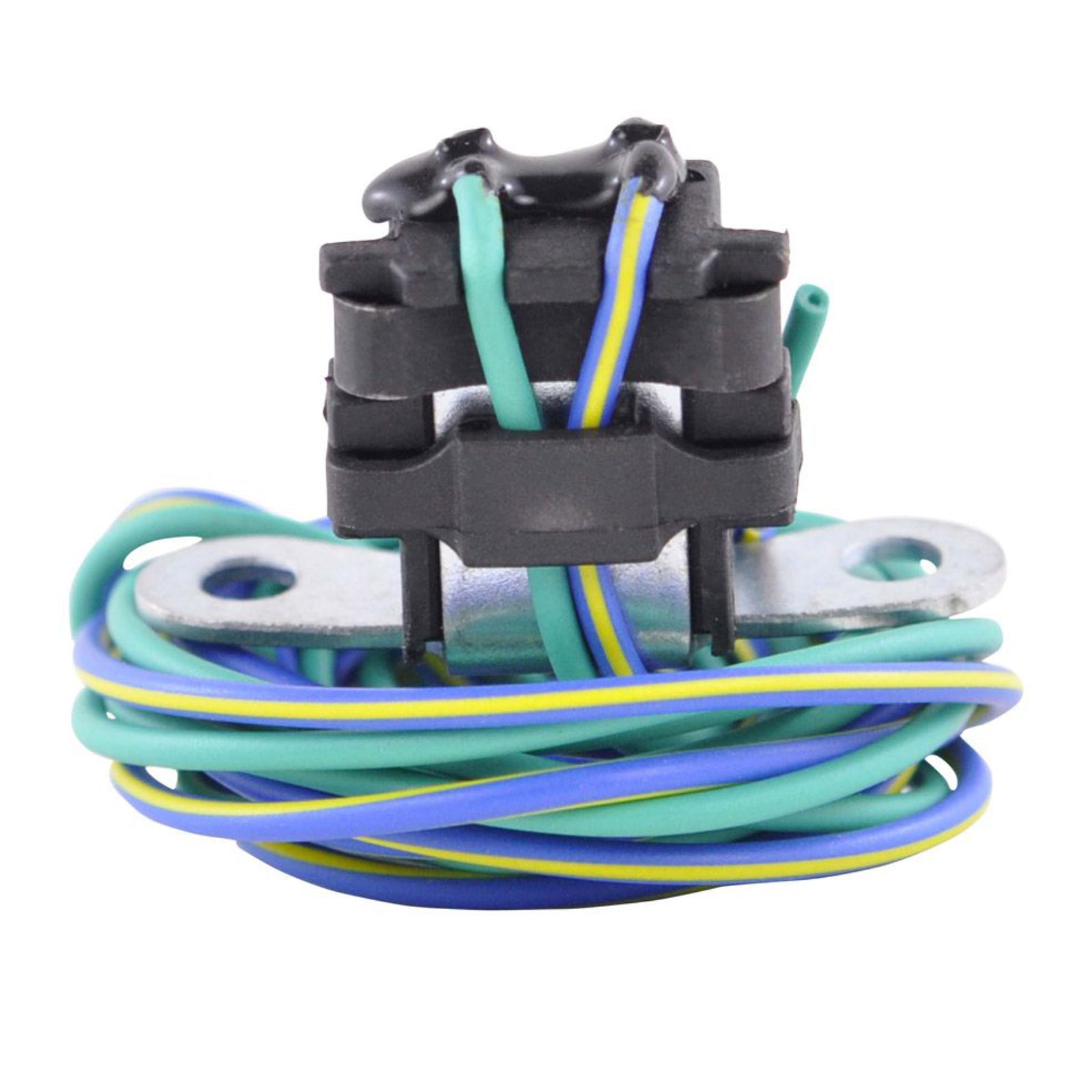

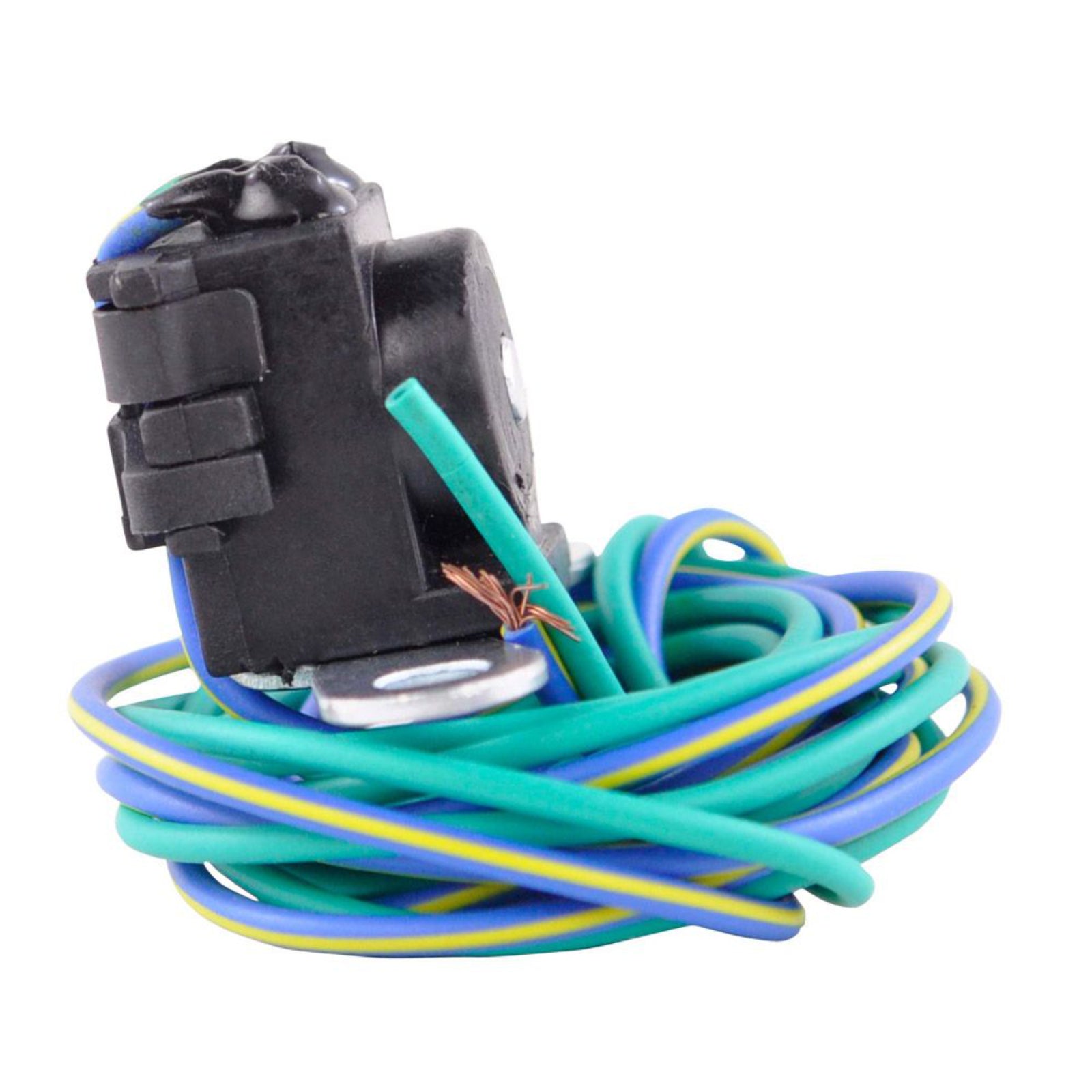

PICKUP PULSAR COIL HON TRX420 TRX450 TRX500 '04-13 (RM00135)

RMS00135

$119.90
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way
  • Most products are not stocked instore. Please contact us to confirm instore availability.

Brand new pick-up coil for Stator

  • We offer a brand new pickup/pulsar coil for you to repair your stator.
  • Often unavailable from the OEM manufacturer
  • All products shipped are tested

Dimensions:

  • Height: 27 mm
  • Length: 22 mm
  • Width: 24 mm
  • Bracket center to center: 34 mm

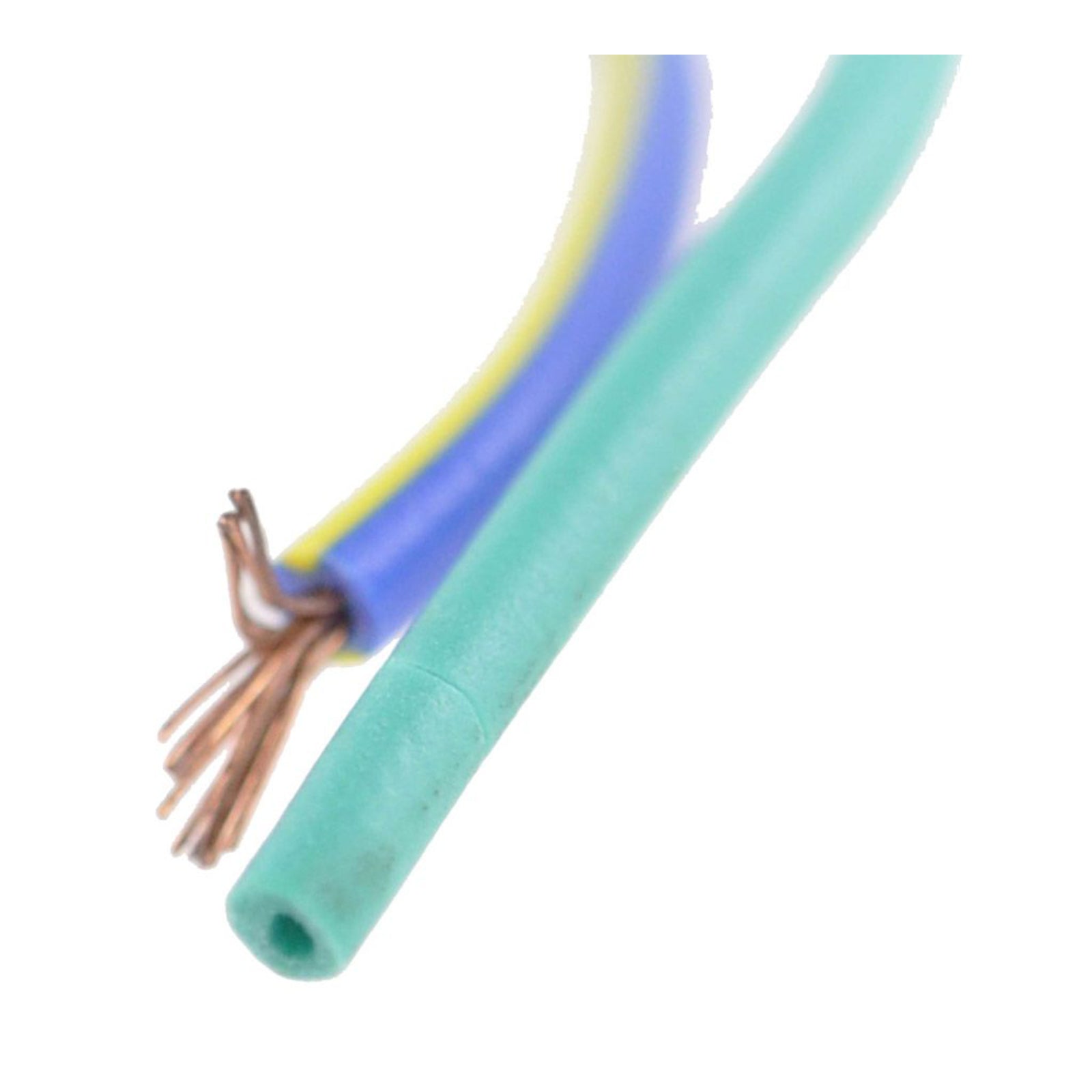

  • Wires length : 980 mm


Other specifications:

  • Number of wires : 2
  • Wire to wire resistance: = 250 ohms +/-20%
